The CBTL02043ABQ is a high-performance, bidirectional multiplexer/demultiplexer IC designed by NXP Semiconductors. This advanced switch is tailored for applications that necessitate the routing of high-speed differential signals. Built with cutting-edge technology, the CBTL02043ABQ is an essential component for systems requiring high bandwidth and signal integrity.

Key Features

• High-speed switching: The IC supports extremely high data rates, making it suitable for high-speed data channels.
• Low insertion loss: The CBTL02043ABQ exhibits low insertion loss, which is critical for maintaining signal quality across the switch.
• Low crosstalk: Crosstalk between channels is minimized, ensuring signal integrity is preserved even when multiple channels are in close proximity.
• Wide bandwidth: The device offers a wide bandwidth to accommodate the needs of high-speed interfaces like PCI Express, SATA, and USB 3.0.

Applications

Designed for versatility, the CBTL02043ABQ is ideal for a variety of applications. It's particularly well-suited for high-speed signal switching in computing and consumer applications, such as laptops, desktops, servers, and high-performance gaming consoles. Its performance characteristics also make it a strong candidate for use in data centers and networking equipment where signal integrity and bandwidth are of paramount importance.

Technical Specifications

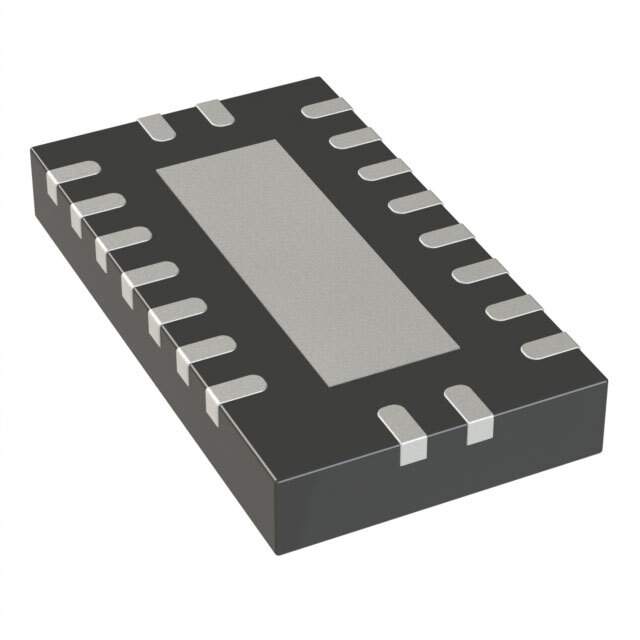

• Package: The component comes in a DHVQFN24 package, which is known for its small footprint and high thermal performance.
• Power supply: It operates on a 3.3V supply voltage, making it compatible with a variety of system power schemes.
• Operating temperature: The CBTL02043ABQ is designed to work within a broad temperature range, ensuring reliability across different environments.

Quality and Support

NXP is committed to delivering high-quality products, and the CBTL02043ABQ is no exception. Customers can expect robust support and extensive documentation, including datasheets, application notes, and design resources to facilitate integration into their projects.
