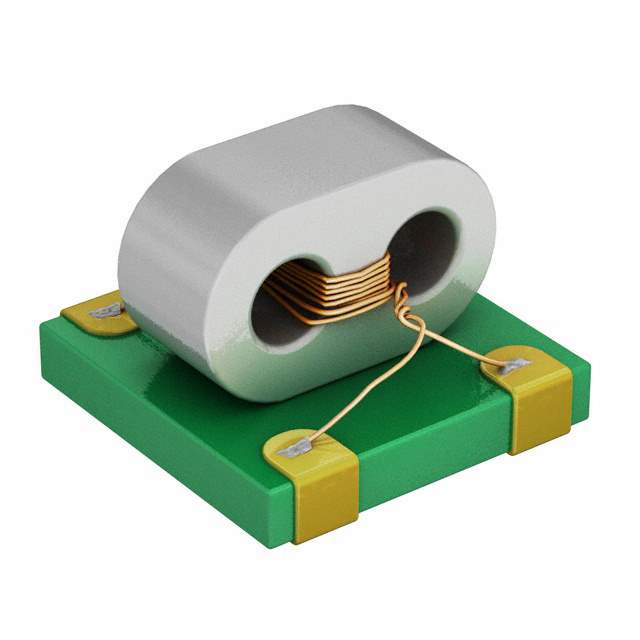

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Pulse Electronics Network
Packaging Reel
Frequency Range 50kHz ~ 450MHz
Impedance - Unbalanced/Balanced 75 / 75Ohm
Insertion Loss (Maximum) 0.8dB
Return Loss (Minimum) -25dB
Manufacturer Package 5-SMD Module
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 713989-CX2041NLT
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CX2041NLT CAD Model

Description

The Pulse Electronics Network CX2041NLT is a surface-mount technology (SMT) 5-SMD module used for RF/IF and RFID applications.

  • Technology: SMT
  • Package: 5-SMD Module
  • Applications: RF/IF and RFID
  • Frequency Range: 50kHz to 450MHz
  • Impedance: 75/75Ohm
  • Insertion Loss (Maximum): 0.8dB
  • Return Loss (Minimum): -25dB
  • Packaging: Reel
  • Supply and Demand Status: Balanced
  • Manufacturer Package Quantity: 1
  • MSL Level: 1 (unlimited)
  • Manufacturer: Pulse Electronics Network
