Overview of NXP's 74LVC86APW Quadruple 2-Input Exclusive-OR Gate

The 74LVC86APW is a high-performance, low-voltage CMOS device from NXP Semiconductors, designed to deliver the functionality of the classical exclusive-OR gate with the added benefits of modern CMOS technology. This integrated circuit is part of the 74LVC family, which is renowned for its low power consumption and high-speed operation. The device is particularly suitable for use in battery-powered systems, portable devices, and other applications where power efficiency is a critical concern.

Key Features

• Logic Type: The 74LVC86APW is a quadruple 2-input exclusive-OR gate, providing four independent XOR gates in a single package.
• Operating Voltage: It operates over a wide voltage range of 1.2V to 3.6V, enabling compatibility with various logic levels and providing interface capabilities with systems operating at different voltages.
• High-Speed Performance: With a typical propagation delay of only a few nanoseconds, this device ensures high-speed operation, making it ideal for high-frequency signal processing and fast switching applications.
• Power Consumption: The 74LVC86APW boasts extremely low static and dynamic power consumption, contributing to the overall power efficiency of the systems it is integrated into.
• Drive Capability: It has the capability to drive 50 ohm transmission lines at 3.3V, which is a testament to its robust output drive strength.

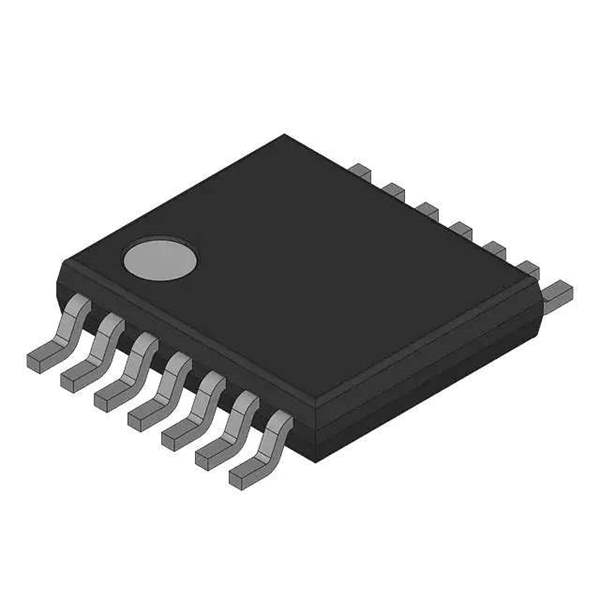

• Package: The device is available in a TSSOP14 (Thin Shrink Small Outline Package) with 14 pins, providing a compact footprint for space-constrained applications.
• Compatibility: It is compatible with TTL (Transistor-Transistor Logic) levels, allowing for easy integration into existing designs that utilize TTL logic.

Applications

The 74LVC86APW is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Function generators
• Parity generators and checkers
• Networking equipment
• Signal processing
• Computer systems

With its combination of high-speed performance, low power consumption, and wide operating voltage range, the 74LVC86APW from NXP is an excellent choice for designers looking to implement efficient and reliable XOR logic functions in their electronic designs.
