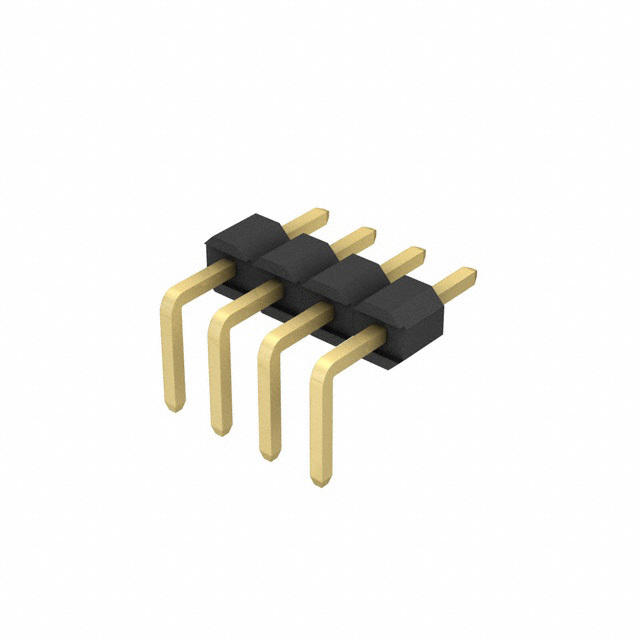

27630402RP2 NorComp Inc.
Same model may have multiple batches, images only for reference.

27630402RP2

Part No 27630402RP2
Manufacturer NorComp Inc.
Catalog Rectangular Connectors
Description CONN HDR 2MM MALE 1ROW RA 4POS
Datasheet
27630402RP2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer NorComp Inc.
Series 2763
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A
Contact Finish Thickness - Post Flash
Win Source Part Number 763527-27630402RP2
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 27630402RP2 CAD Model

Description

The NorComp Inc. 27630402RP2 is a medium-popularity electronic component with limited supply and demand status.

  • Type: Board-to-Board or Cable Connector
  • Positions: 4
  • Pitch: 0.079" (2.00mm)
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through Hole, Right Angle
  • Manufacturer: NorComp Inc.
  • Packaging: Bulk
