The TCA9509MRVHR from Texas Instruments is a versatile level translating I2C bus repeater designed to enable seamless communication between devices operating at different voltage levels. This integrated circuit (IC) is an essential component for developers looking to interface low voltage nodes with higher voltage systems without compromising signal integrity or risking damage to sensitive components.

Key Features

• Level Shifting: Bidirectional voltage-level translation from 0.9V to 3.6V on the A-side to 2.7V to 5.5V on the B-side, allowing for compatibility between devices that operate at different logic levels.
• I2C Bus Repeater: Provides two repeater channels that extend the physical length of an I2C bus, enabling longer communication distances between I2C devices.
• High-Speed Operation: Supports fast-mode and standard-mode I2C communication speeds, ensuring efficient data transfer rates for a wide range of applications.
• Hot-Swap Capability: Designed to support hot insertion and removal, minimizing system downtime and allowing for easy maintenance and upgrades.
• Low Standby Current: Features a low standby current, contributing to energy-efficient operation and longer battery life in portable applications.
• Robust Protection: Equipped with over-voltage tolerant inputs, the TCA9509MRVHR ensures protection against unexpected voltage spikes and enhances system reliability.

Applications

The TCA9509MRVHR is suitable for a wide range of applications across various industries. It is ideal for systems that require communication between microcontrollers and peripherals with different operating voltages, such as:

• Consumer electronics
• Mobile phones and personal media devices
• Data communication systems
• Industrial and automotive control systems

Package and Availability

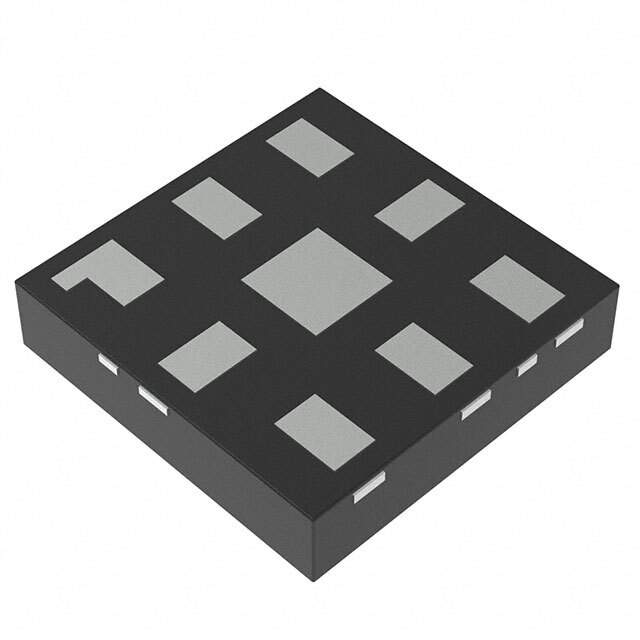

This IC is available in a compact VQFN (R-VQFN) package, which is highly suited for space-constrained applications. The package's small footprint allows for a minimalistic PCB layout, while still providing robust functionality and performance. The TCA9509MRVHR is part of Texas Instruments' commitment to providing advanced solutions for cross-voltage level communication, and is available for order through their official channels and authorized distributors.
