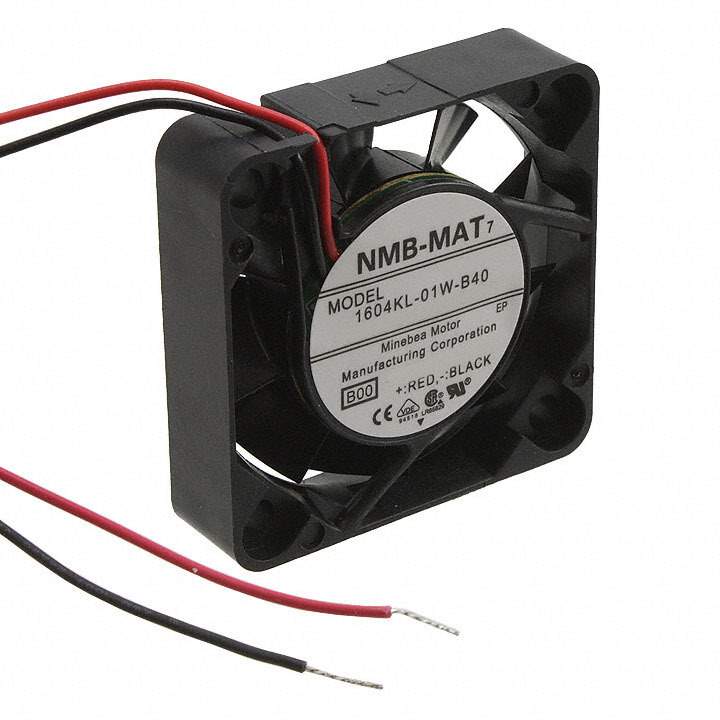

1604KL-01W-B40-B00 Real Image
Same model may have multiple batches, images only for reference.

1604KL-01W-B40-B00

Part No 1604KL-01W-B40-B00
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 40X10MM BALL 5VDC WIRE / Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 5.3 CFM (0.148m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 04010KA
Package Bulk
Product Status Obsolete
Voltage - Rated 5VDC
Size / Dimension Square - 40mm L x 40mm H
Width 10.00mm
Air Flow 5.3 CFM (0.148m³/min)
Static Pressure 0.136 in H2O (33.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 25.0dB
Power (Watts) 600 mW
RPM 5500 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.033 lb (14.97 g)
Current Rating (Amps) 0.120A
Voltage Range 4.5 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Standard Package 420
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350002-1604KL-01W-B40-B00
Ultra Librarian 3D Model Ultra Librarian 1604KL-01W-B40-B00 CAD Model

Description

The NMB Technologies Corporation 1604KL-01W-B40-B00 is a DC brushless fan designed for thermal management in electronic devices.

  • Size / Dimension: 40mm L x 40mm H
  • Standard Package: 420
  • Weight: 0.033 lb (14.97 g)
  • Voltage Range: 4.5 ~ 5.5VDC
  • Voltage - Rated: 5VDC
  • Power (Watts): 600 mW
  • Air Flow: 5.3 CFM (0.148m³/min)
  • Static Pressure: 0.136 in H2O (33.9 Pa)
  • Noise: 25.0dB
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Material - Frame: Plastic
  • Material - Blade: Plastic
  • Approvals: CE, CSA, UL, VDE
