Same model may have multiple batches, images only for reference.

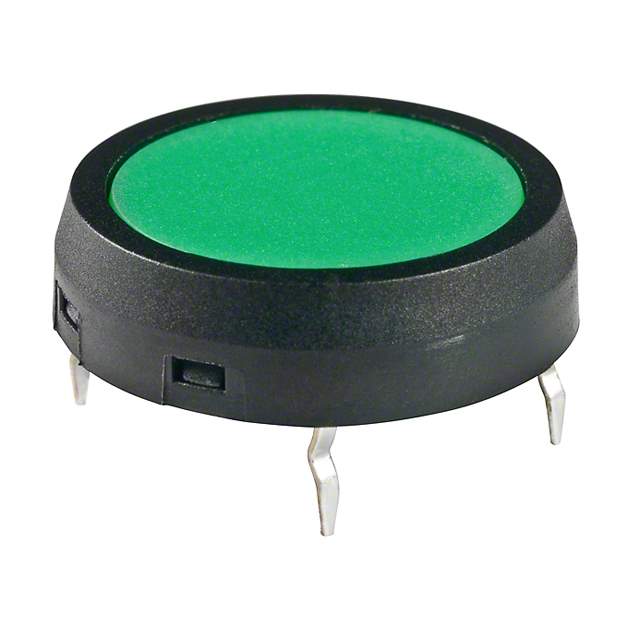

JF15CP2F Real Image
Same model may have multiple batches, images only for reference.

JF15CP2F

Part No JF15CP2F
Manufacturer NKK Switches
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr NKK Switches
Series JF
Package Tray
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Round Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.08mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 17.70mm Dia
Illumination Non-Illuminated
Operating Force 300gf
Features Process Sealed
Temperature Range - Operating -25°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.40mm
Mechanical Life 500,000 Cycles
Base Product Number JF15CP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names -JF15CP2F,360-2818,JF15CP2F-ND
Standard Package 1
Win Source Part Number 1162526-JF15CP2F
Ultra Librarian 3D Model Ultra Librarian JF15CP2F CAD Model

Description

The NKK Switches JF15CP2F is a high-quality tactile switch designed for use in various applications.

  • Features: Process-sealed
  • Mechanical Life: 500,000 cycles
  • Package: Tray
  • Standard Package: 1
  • Win Source Part Number: 1162526-JF15CP2F
  • Ideal for: Those looking for a high-quality and reliable tactile switch
