Same model may have multiple batches, images only for reference.

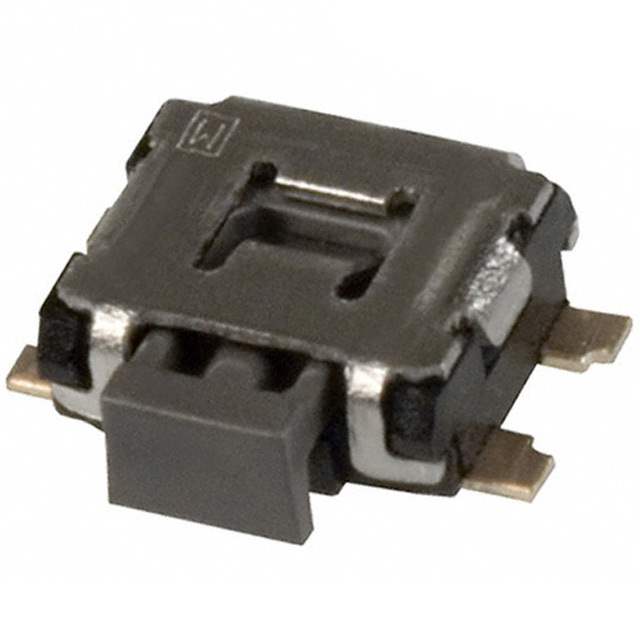

EVQ-P7J01K Real Image
Same model may have multiple batches, images only for reference.

EVQ-P7J01K

Part No EVQ-P7J01K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
EVQ-P7J01K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 3.50mm x 2.90mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001030-EVQ-P7J01K
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQ-P7J01K CAD Model

Description

EVQ-P7J01K Features and Benefits

  • Enhanced Feedback: Provides crisp tactile response.
  • Robust Design: Built to endure physical stress.
  • Versatile Compatibility: Suitable for various devices.

Applications

  • Automotive Controls
  • Office Equipment
  • Consumer Gadgets

The EVQ-P7J01K is crafted to deliver exceptional tactile feedback. This robust switch is versatile enough to be deployed across automotive controls and a wide range of consumer gadgets. Enhanced tactile features make it a preferred choice for devices where user interaction is key.
