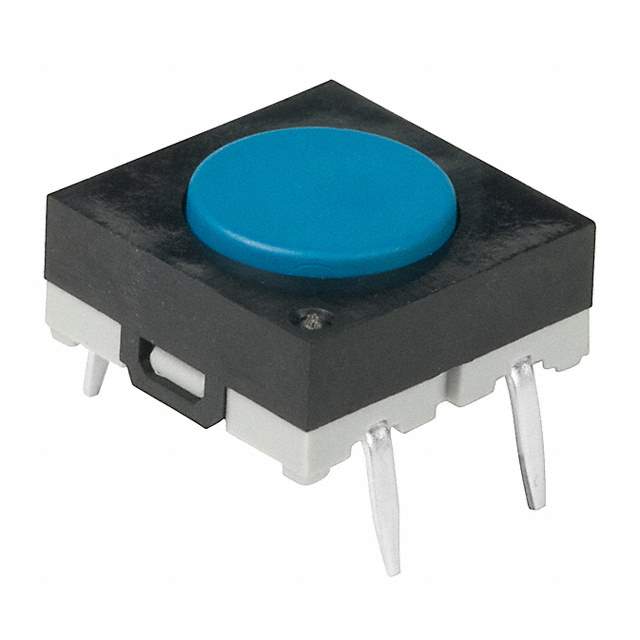

JB15HFP Real Image
Same model may have multiple batches, images only for reference.

JB15HFP

Part No JB15HFP
Manufacturer NKK Switches
Catalog Tactile Switches
Description SWITCH TACT SPST-NO 0.125A 24V
Datasheet
JB15HFP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Bulk
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.125A @ 24VDC
Actuator Type Round Button
Mounting Through Hole
Actuator Height off PCB, Vertical 4.90mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 10.00mm x 10.00mm
Illumination Non-Illuminated
Operating Force 265gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Process Sealed
Actuator Material Polybutylene Terephthalate (PBT)
Switch Travel 0.30mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1050053-JB15HFP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JB15HFP CAD Model

Description

The NKK Switches 1050053-JB15HFP is a Process Sealed SPST-NO Off-Mom Round Button switch with a through-hole mounting style.

  • Switch Type: Process Sealed SPST-NO Off-Mom Round Button
  • Mounting Style: Through-Hole
  • Ingress Protection: IP67 (Dust-tight and Waterproof)
  • Actuator Material: Polybutylene Terephthalate (PBT)
  • Actuator Orientation: Top Actuated
  • Contact Rating: 0.125A @ 24VDC
  • Operating Force: 265gf
  • Mechanical Life: 1,000,000 cycles
  • Outline: 10.00mm x 10.00mm
  • Illumination: Non-Illuminated
  • Illumination Voltage/Color: None
  • Operating Temperature: -25°C to 70°C
