Same model may have multiple batches, images only for reference.

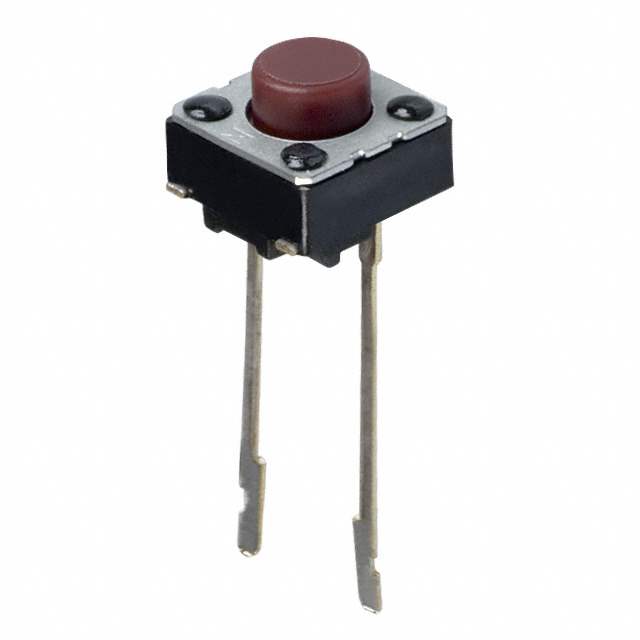

EVQ-21305R Real Image
Same model may have multiple batches, images only for reference.

EVQ-21305R

Part No EVQ-21305R
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Through Hole
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001027-EVQ-21305R
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-21305R CAD Model

Description

Product Overview

The EVQ-21305R is an ultra-slim, high-performance tactile switch that provides exceptional feel and reliability. Designed with precision, it caters to applications seeking compact and reliable tactile response.

Features and Benefits

  • Ultra-Slim Design: Perfect for devices where space is a premium.
  • Excellent Tactile Feedback: Ensures a satisfying user experience.
  • Long Operating Life: Built to withstand extensive use.

Applications

  • Medical equipment
  • Security systems
  • Mobile communication devices

Additional Details

Offering easy integration into various designs, the EVQ-21305R is versatile and suitable for both commercial and personal projects.
