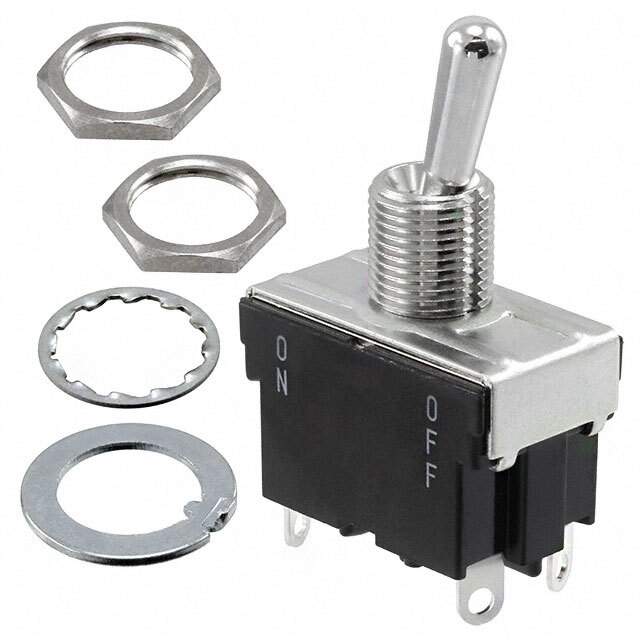

The ET215K12-Z is a miniature toggle switch manufactured by Nidec Copal Electronics. It is designed for use in a wide range of applications where a compact, reliable, and easy-to-operate switching mechanism is required. This switch is commonly found in instrumentation, control panels, consumer electronics, and other devices where manual on/off or selection functions are needed.

Applications

• Instrumentation and measurement equipment
• Control panels
• Consumer electronics
• Telecommunications equipment
• Medical devices
• Audio equipment

Features

• Contact Arrangement: SPDT (Single Pole Double Throw)
• Switching Function: ON-ON
• Actuator Type: Toggle Lever
• Mounting Type: Through Hole
• Contact Material: Silver plated
• Termination Style: Solder Lug
• Current Rating: Typically 0.4VA max at 28V AC/DC
• Operating Temperature: -30°C to +85°C
• Mechanical Life: 50,000 cycles minimum

Benefits

• Compact Size: Ideal for applications with limited space.
• High Reliability: Ensures consistent and dependable performance.
• Easy to Operate: Provides a user-friendly interface for manual switching.
• Versatile Application: Suitable for a broad range of electronic devices.
• Durable Construction: Withstands demanding operating conditions.
• Long Lifespan: Minimizes the need for frequent replacements.

Additional Details

The ET215K12-Z toggle switch features a robust construction with high-quality materials to ensure long-term reliability. Its SPDT configuration allows for versatile switching options, making it suitable for various circuit designs. The silver-plated contacts provide excellent conductivity and resistance to corrosion. The solder lug terminals offer secure and easy connections. This switch is designed to meet industry standards for performance and safety. The small size of the switch allows for high density packaging on PCBs.
