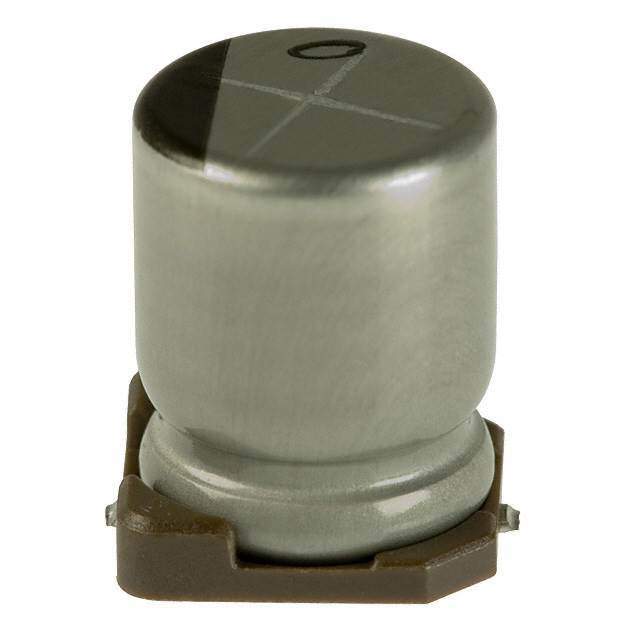

UWT1E470MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWT1E470MCL1GB

Part No UWT1E470MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWT
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 66 mA @ 120 Hz
Ripple Current @ High Frequency 99 mA @ 10 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2189-6,493-2189-1,493-2189-2,Q10317757
Standard Package 1,000
Win Source Part Number 1038800-UWT1E470MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWT1E470MCL1GB CAD Model

Description

The UWT series aluminum electrolytic capacitor is a high-quality capacitor designed for general-purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Temperature Range: -55°C to 105°C
  • Lifetime: 1000 Hrs @ 105°C
  • Polarization: Polarized
  • ECCN: EAR99
  • Manufacturer: Nichicon
  • Alternative Part (Cross-Reference): EEE-1EA470WP, EEE-HA1E470WP, EEE-1EA470WAP, EMVE250ADA470MF55G, and UWX1E470MCL1GB
