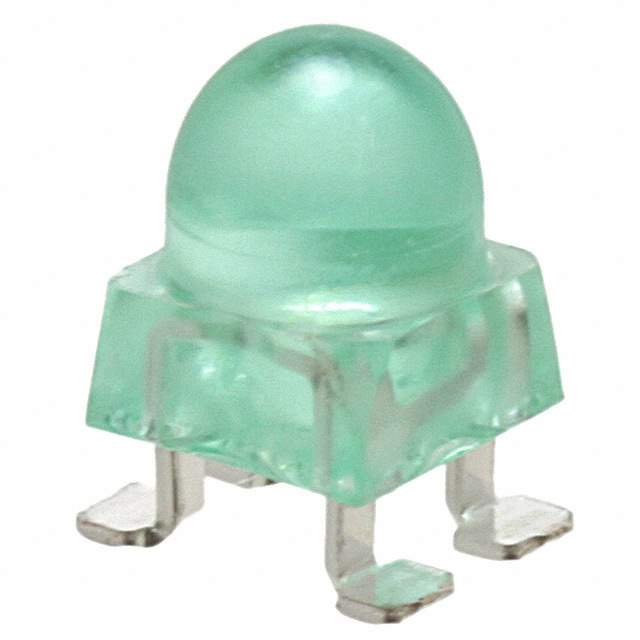

The ALMD-CM3D-XZ002 is a surface mount LED manufactured by Broadcom Limited. This LED is part of their AlInGaP (Aluminum Indium Gallium Phosphide) series, known for high brightness and efficiency in a compact package. These LEDs are commonly used in various indication and display applications.

Applications:

• Front panel indicators
• Backlighting for LCD screens
• Automotive lighting
• Consumer electronics
• Industrial control panels

Features:

• Surface mount package for automated assembly.
• High brightness AlInGaP material for excellent visibility.
• Wide viewing angle for consistent light output.
• Low power consumption for energy efficiency.
• Long lifespan for extended operation.
• RoHS compliant for environmental safety.

Benefits:

• Reduces assembly costs through automated surface mount process.
• Provides clear and bright indication in various lighting conditions.
• Ensures consistent light output across a wide viewing area.
• Minimizes power consumption in battery-powered devices.
• Reduces maintenance costs through extended lifespan.
• Meets environmental regulations for safe product design.

Additional Details:

The ALMD-CM3D-XZ002 LED typically has a specific forward voltage and current requirement, which can be found in the Broadcom product datasheet. The color of the emitted light is dependent on the specific doping and material composition. The LED's intensity is measured in millicandelas (mcd). The package dimensions are typically small, allowing for dense placement on printed circuit boards (PCBs). These LEDs are often used in arrays or matrices to create larger displays. Proper thermal management is important to ensure optimal performance and lifespan. The AlInGaP material provides high luminous efficiency, making these LEDs suitable for a wide range of applications.
