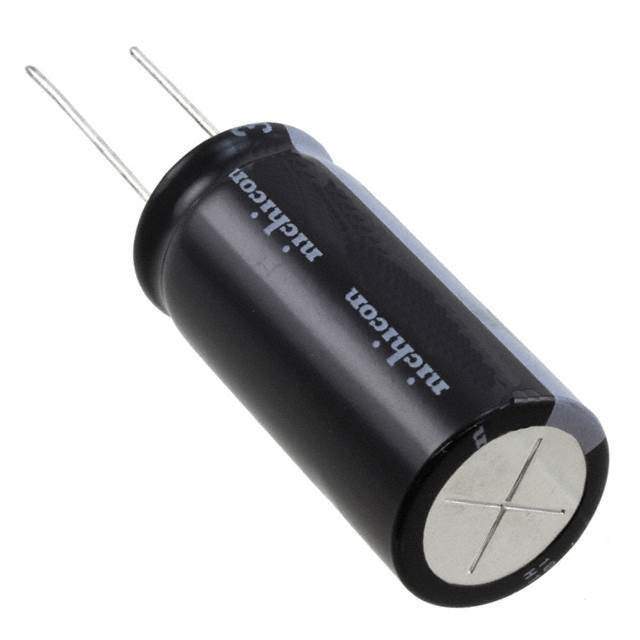

UVY2W101MHD Real Image
Same model may have multiple batches, images only for reference.

UVY2W101MHD

Part No UVY2W101MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 450V RADIAL / Cap Aluminum Lytic 100uF 450V 20% (18 X 40mm) Radial 7.5mm 200mA 1000h 105°C Bulk
Datasheet
UVY2W101MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UVY
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 450V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 200mA @ 120Hz
Ripple Current - High Frequency 320mA @ 10kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Maximum) 1.654" (42.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777864-UVY2W101MHD
Popularity Medium
Supply and Demand Status Limited
Family Name UVY
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian UVY2W101MHD CAD Model

Description

Nichicon UVY series capacitors are ideal for general applications. With a capacitance of 100μF, a tolerance of ±20%, and a voltage rating DC of 450V, these capacitors are polarized and have a lead spacing of 0.295" (7.50mm).

  • Capacitance: 100μF
  • Tolerance: ±20%
  • Voltage Rating (DC): 450V
  • Polarized: Yes
  • Lead Spacing: 0.295" (7.50mm)
  • ESR: -
  • Ripple Current (Low Frequency): 200mA @ 120Hz
  • Ripple Current (High Frequency): 320mA @ 10kHz
  • Lifetime: 1000 Hrs @ 105°C
  • Package: Radial, can
  • Diameter: 0.709" Dia (18.00mm)
  • Height (Seated): 1.654" (42.00mm)
  • Estimated EOL Date: 2029
  • Country of Origin: China, Japan, Malaysia
