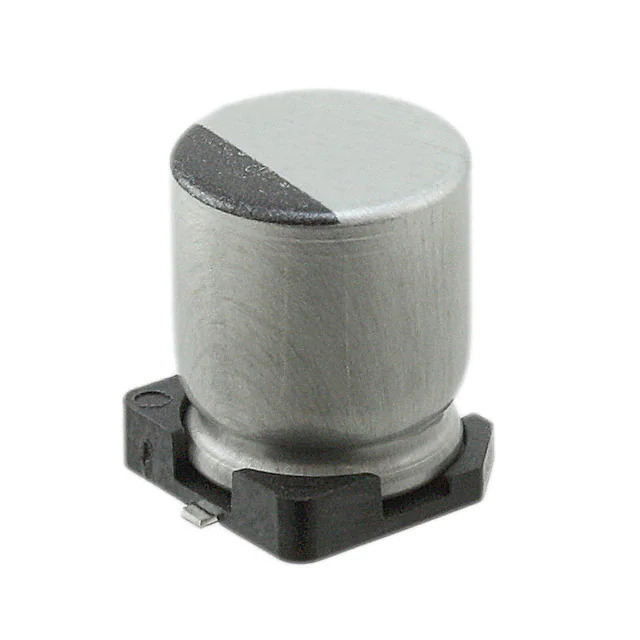

16TZV100M6.3X8 Rubycon
Same model may have multiple batches, images only for reference.

16TZV100M6.3X8

Part No 16TZV100M6.3X8
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360210-16TZV100M6.3X8
Ultra Librarian 3D Model Ultra Librarian 16TZV100M6.3X8 CAD Model

Description

The Rubycon 1360210-16TZV100M6.3X8 is a surface mount aluminum electrolytic capacitor with a capacitance of 100μF and a voltage rating of 16V.

  • Product Name: 1360210-16TZV100M6.3X8
  • Manufacturer: Rubycon
  • Series: TZV
  • Capacitance: 100μF
  • Voltage Rating: 16V
  • Application: Automotive
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Ripple Current (Low Frequency): 150mA @ 120Hz
  • Ripple Current (High Frequency): 300mA @ 100kHz
  • Diameter: 0.248 inches (6.30mm)
  • Height: 0.315 inches (8.00mm)
  • Surface Mount Land Size: 0.260 inches (6.60mm) in length and width
  • Status: Active
