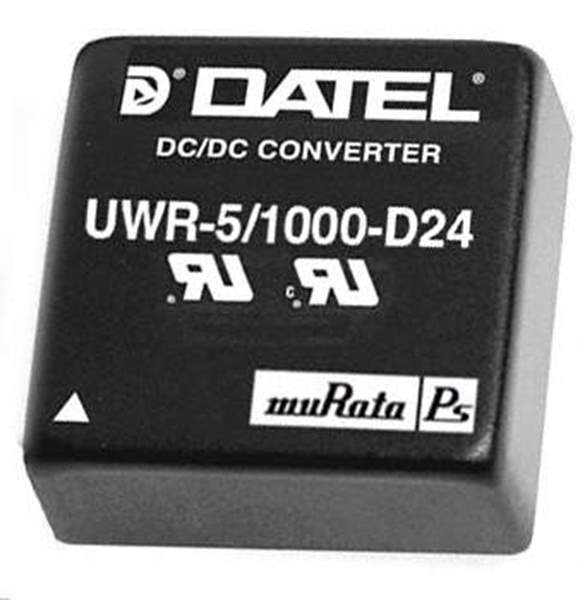

UWR-5/1000-D24-C Real Image UWR-5/1000-D24-C Real Image
Same model may have multiple batches, images only for reference.
UWR-5/1000-D24-C Real Image UWR-5/1000-D24-C Real Image
UWR-5/1000-D24-C Real Image UWR-5/1000-D24-C Real Image
Same model may have multiple batches, images only for reference.

UWR-5/1000-D24-C

Part No UWR-5/1000-D24-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 5V 1000MA SGL T/H / Module DC-DC 24VIN 1-OUT 5V 1A 15W 6-Pin
Datasheet
UWR-5/1000-D24-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series UWR
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 5.2V
Current - Output (Maximum) 1A
Power (Watts) 5W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 60°C
Efficiency 75%
Mounting Style Through Hole
Package 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
Win Source Part Number 798941-UWR-5/1000-D24-C
Popularity Medium
Supply and Demand Status Limited
Family Name UWR-5/1000-D24
Introduction Date June 26, 2007
Country of Origin China, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UWR-5/1000-D24-C CAD Model

Description

The Murata Power Solutions Inc. UWR-5/1000-D24-C is an isolated module.

  • Power: 5W
  • Efficiency: 75%
  • Voltage Isolation: 1.5kV (1500V)
  • Voltage Output: 5.2V
  • Package: 6-DIP
  • Applications: ITE (Commercial)
  • Operating Temperature Range: -25°C to 60°C
  • Mounting Style: Through-hole
  • Series: UWR
  • Packaging: Tube
  • Outputs: 1
  • Status: Obsolete (EOL)
  • Dimensions: 1.00" L x 1.00" W x 0.45" H (25.4mm x 25.4mm x 11.4mm)
  • Input Voltage Range: 18V to 36V
  • Maximum Output Current: 1A
