Same model may have multiple batches, images only for reference.

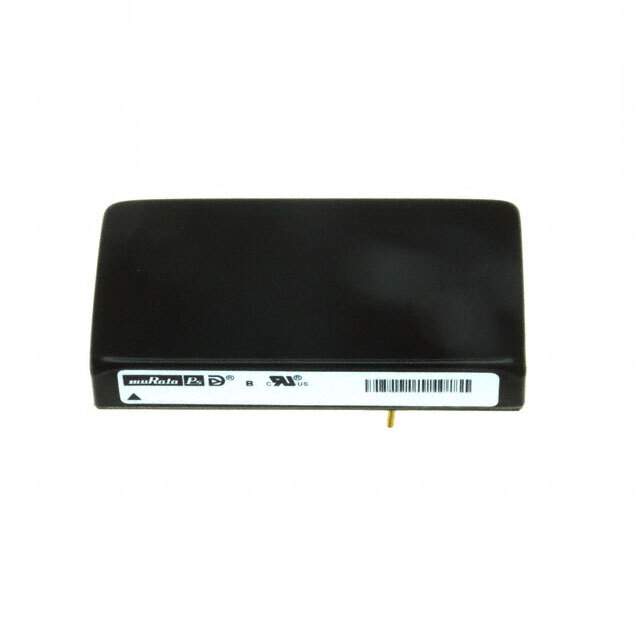

UWR-12/750-D48A-C Real Image
Same model may have multiple batches, images only for reference.

UWR-12/750-D48A-C

Part No UWR-12/750-D48A-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 12V 750MA SGL A T/H / Module DC-DC 48VIN 1-OUT 12V 0.75A 20W 4-Pin Case C-2
Datasheet
UWR-12/750-D48A-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series UWR
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 12V
Current - Output (Maximum) 750mA
Power (Watts) 9W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 70°C
Efficiency 82.5%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm)
Win Source Part Number 798939-UWR-12/750-D48A-C
Popularity Medium
Supply and Demand Status Limited
Family Name UWR-12/750-D48
Introduction Date March 19, 2009
Country of Origin China, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UWR-12/750-D48A-C CAD Model

Description

The Murata Power Solutions Inc. UWR series isolated module is a through-hole type.

  • Package Dimensions: 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm)
  • Power Output: 9W
  • Efficiency: 82.5%
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V
  • Current Output: 750mA
  • Applications: ITE (Commercial)
  • Voltage Isolation: 1.5kV (1500V)
  • Status: Obsolete (EOL)
  • Alternative Cross-Reference: SW001A2B9Z, LES015ZH-3, SW001A2B, SW001A2B9
