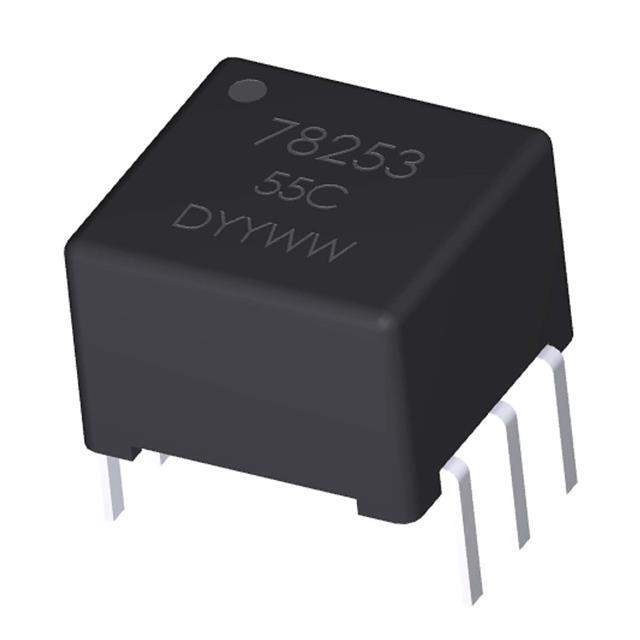

78253/55VC Real Image
Same model may have multiple batches, images only for reference.

78253/55VC

Part No 78253/55VC
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description MAX253 Compatible Converter Transformers | XFRMR 5V IN/OUT MAX 253 DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Murata Power Solutions Inc.
Inductance 240μH
For Use With/Related Products MAX253
Mounting Style Through Hole
Parts Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Maximum) 0.260" (6.60mm)
Weight 0.04 oz (1.14g)
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1133699-78253/55VC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 78253/55VC CAD Model

Description

The Murata Power Solutions Inc. transformer is a through-hole component that is designed for use with MAX253. It has an inductance of 240μH and weighs 0.04 oz (1.14g).

  • Mounting Type: Through-Hole
  • Designed for: MAX253
  • Inductance: 240μH
  • Weight: 0.04 oz (1.14g)
  • Height: 0.260" (6.60mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.354" L x 0.375" W (9.00mm x 9.52mm)
