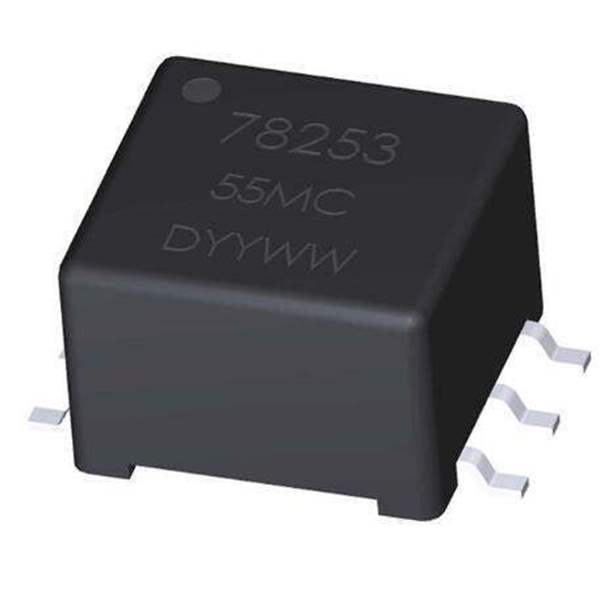

78253/55MVC-R Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

78253/55MVC-R

Part No 78253/55MVC-R
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description TRANSFORMER 240UH MAX253 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Murata Power Solutions Inc.
Category Transformers Specialty Transformers
Part Status Not For New Designs
Inductance 240 µH
For Use With/Related Products MAX253
Mounting Type Surface Mount
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.260" (6.60mm)
Weight 0.002 lb (0.91 g)
Win Source Part Number WS1210986-78253/55MVC-R
Ultra Librarian 3D Model Ultra Librarian 78253/55MVC-R CAD Model

Description

The 78253 series of converter transformers are specifically designed for use with the MAX253 chip set to provide isolated power supplies. The 5V version can supply 1W and the 3.3V version can supply 500mW. A centre tapped secondary winding allows for full bridge, half bridge or voltage doubling.
