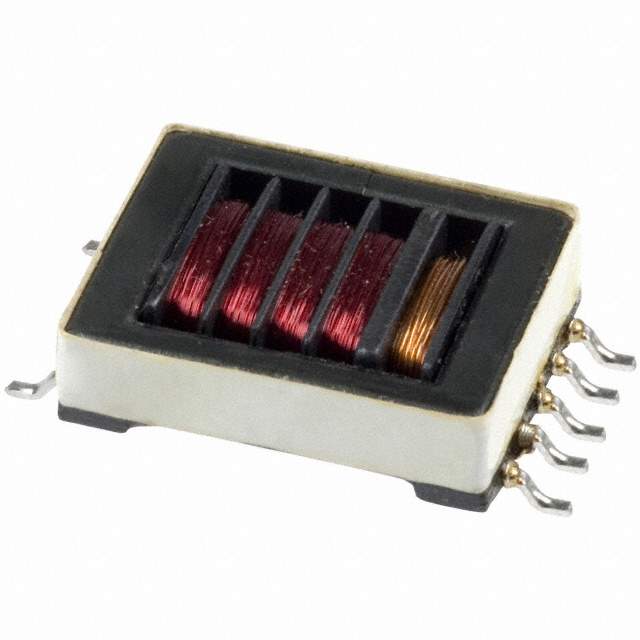

PM61300-4-RC Real Image1 PM61300-4-RC Real Image2
Same model may have multiple batches, images only for reference.
PM61300-4-RC Real Image1 PM61300-4-RC Real Image2
PM61300-4-RC Real Image1 PM61300-4-RC Real Image2
Same model may have multiple batches, images only for reference.

PM61300-4-RC

Part No PM61300-4-RC
Manufacturer Bourns Inc.
Catalog Specialty Transformers
Description TRANSFORMER CCFL INVERT 13V SMD
Datasheet
PM61300-4-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Specialty Transformers
Mfr Bourns Inc.
Series PM61300
Package Tape & Reel
Product Status Obsolete
Inductance 20 µH
For Use With/Related Products -
Mounting Type Surface Mount
Size / Dimension 0.650" L x 0.768" W (16.50mm x 19.50mm)
Height - Seated (Max) 0.280" (7.10mm)
Weight -
Base Product Number PM61300
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 250 pcs
Win Source Part Number 1383199-PM61300-4-RC
Ultra Librarian 3D Model Ultra Librarian PM61300-4-RC CAD Model

Description

The PM61300-4-RC is a specialty transformer from Bourns Inc. It is part of the PM61300 series and is surface mountable.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Size: 0.650" L x 0.768" W (16.50mm x 19.50mm)
  • Inductance: 20µH
  • Height (Seated): 0.280" (7.10mm)
  • Suitable for: Use with related products in various applications.
  • Moisture Sensitivity Level: 1 (unlimited)
  • REACH Compliance: Not Affected
  • Operating Temperature: Not specified
  • Lifecycle Status: Obsolete
