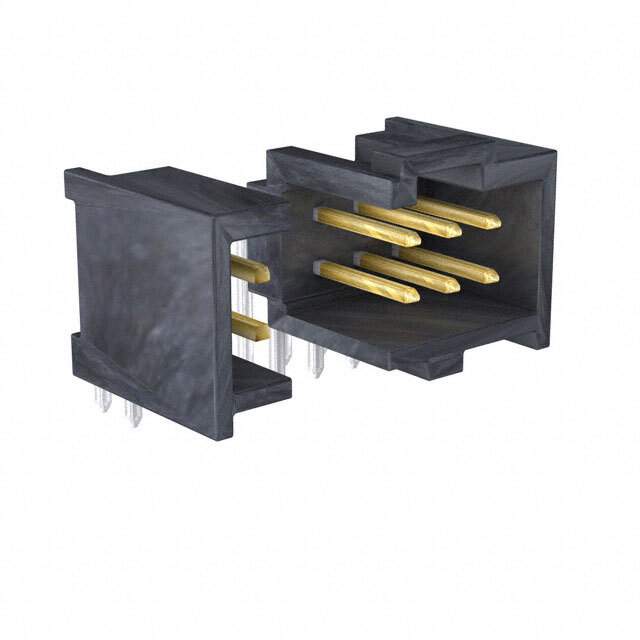

0901303216

Get a Quote

Part No	0901303216
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 16POS 2.54MM / Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.384" (9.75mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	118.1µin (3.00µm)
Applications	Automotive, General Purpose
Base Product Number	90130
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	901303216,WM8280,23-0901303216,90130-3216,WM8280-ND
Standard Package	1
Win Source Part Number	1332436-0901303216
Ultra Librarian 3D Model	Ultra Librarian 0901303216 CAD Model

Description

The 1332436-0901303216 connector from Molex is a high-quality rectangular connector header designed for use in a variety of electronic devices.

Manufacturer: Molex
Packaging: Tray
Positions: 16
Connector Type: Header
Contact Type: Male Pin
Positions Loaded: All
Rows: 2
Row Spacing: 0.100" (2.54mm)
Termination: Solder
Fastening Type: Latch Holder
Application: Automotive and General Purpose
MSL Level: 1 (Unlimited)
REACH Status: Unaffected
HTSUS Code: 8536.69.4040
