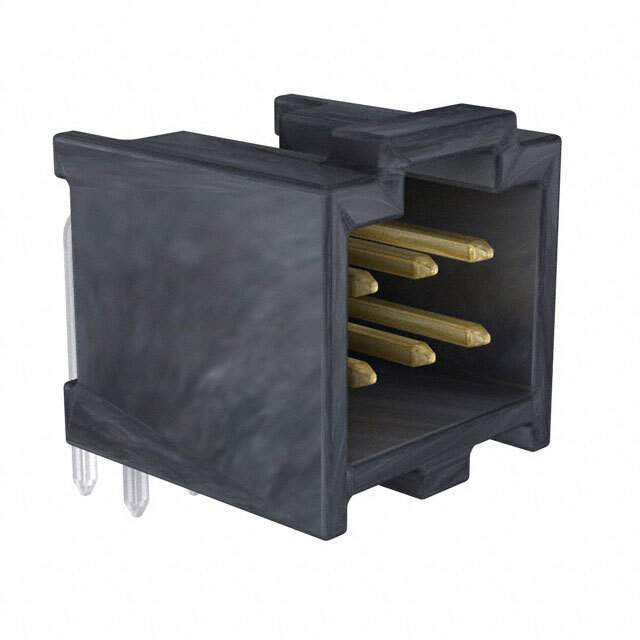

90130-3206 Real Image
Same model may have multiple batches, images only for reference.

90130-3206

Part No 90130-3206
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 6POS .100" R/A GOLD
Datasheet
90130-3206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.384" (9.75mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 118.1μin (3.00μm)
Applications Automotive, General Purpose
Win Source Part Number 052822-90130-3206
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90130-3206 CAD Model

Description

Overview

The 90130-3206 connector is a cutting-edge solution designed to offer unparalleled connectivity in sectors that require high reliability and efficiency.

Features and Benefits

  • Flexible Integration: Easily adaptable to various system requirements.
  • Strong Signal Capability: Maintains signal integrity over long distances.
  • Weatherproof Design: Protects against environmental challenges, suitable for outdoor applications.

Applications

  • Wireless Communication Systems
  • Military Equipment
  • Remote Sensing Applications
