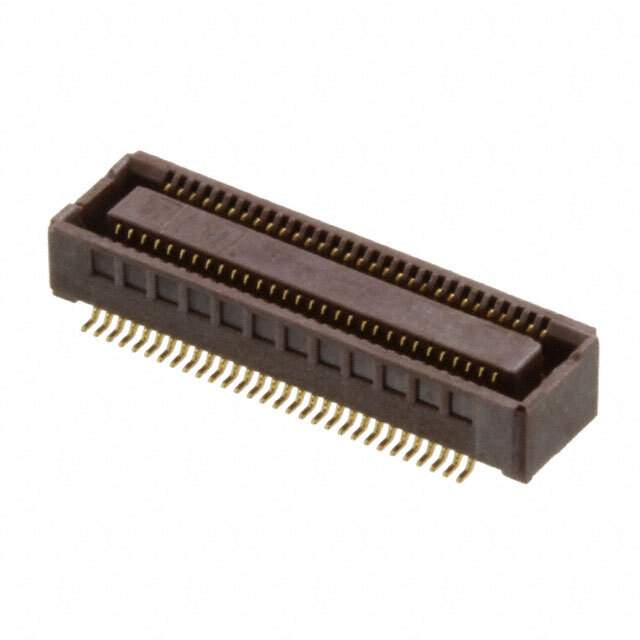

0546840608

Get a Quote

Part No	0546840608
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 60POS SMD GOLD / 60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Molex
Series	SlimStack 54684
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	60
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	3.5mm, 4mm
Height Above Board	0.102" (2.60mm)
Base Product Number	054684
Standard Package	1,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337480-0546840608
Ultra Librarian 3D Model	Ultra Librarian 0546840608 CAD Model

Description

The SlimStack 54684 series connector is a surface mount, mezzanine type rectangular connector array with 60 positions and a pitch of 0.016 inches (0.40mm).

Series: SlimStack 54684
Mounting Type: Surface Mount
Connector Type: Mezzanine, Rectangular Connector Array
Number of Positions: 60
Pitch: 0.016 inches (0.40mm)
Connector Type: Receptacle
Contact Type: Center Strip Contacts
Number of Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 3.5mm and 4mm
Height Above Board: 0.102 inches (2.60mm)
Package: Tape and Reel
Units per Package: 1,500
Status: Obsolete
