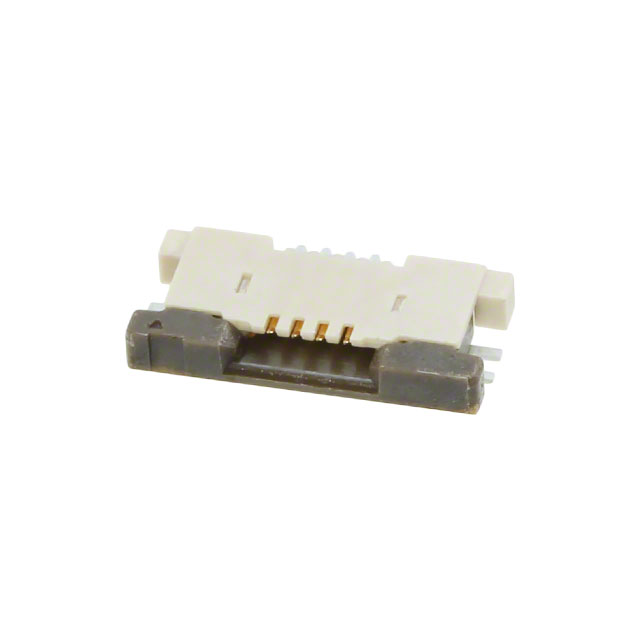

545500471 Molex, LLC
Same model may have multiple batches, images only for reference.

545500471

Part No 545500471
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 4 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
545500471 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series Easy-On? 54550
Packaging Reel(TR)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 4
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Win Source Part Number 127096-0545500471
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 545500471 CAD Model

Description

Product Overview

With a focus on advanced technology, the 545500471 is designed to deliver outstanding results in high-demand environments. Its innovative features cater to a multitude of modern-day applications.

Applications

  • Smart home devices
  • Robotics
  • Military technology
  • Automotive electronics

Features and Benefits

  • High-speed data processing
  • Resistance to extreme conditions
  • Easy integration with smart technologies
  • Lightweight and compact design

The 545500471 ensures superior performance and sustainability, aligning with the latest technological advancements to meet future needs effectively.
