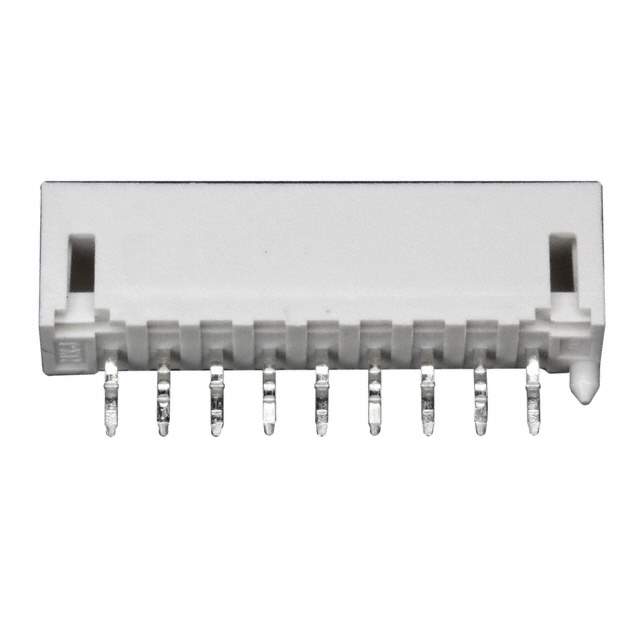

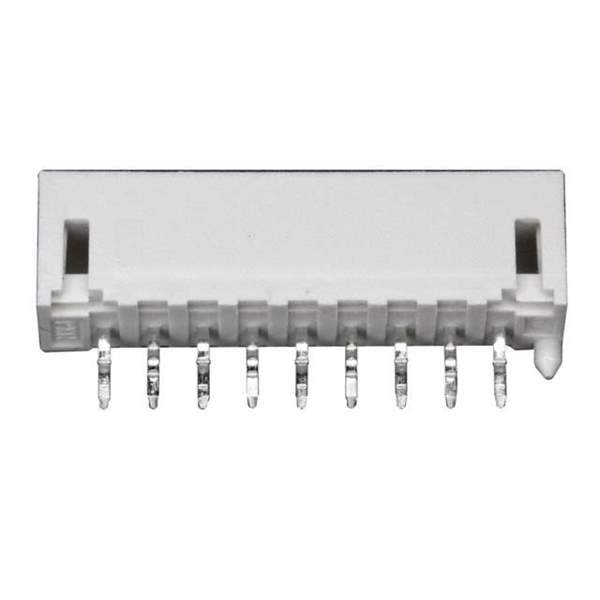

53324-0960 Real Image
Same model may have multiple batches, images only for reference.

53324-0960

Part No 53324-0960
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2MM 9POS PCB TIN
Datasheet
53324-0960 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Mi II 53324
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.135" (3.45mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Win Source Part Number 763975-53324-0960
Family Name 53324
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53324-0960 CAD Model

Description

The Molex Connector Corporation 763975-53324-0960 is a 9-position header connector with a through-hole mounting style.

  • Positions: 9
  • Mounting Style: Through-hole
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass-filled
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Contact Length (Mating): 0.135 inches (3.45mm)
  • Contact Length (Post): 0.138 inches (3.50mm)
  • Insulation Height: 0.236 inches (6.00mm)
  • Contact Shape: Square
  • Shroud: Four walls
  • Lock: Detent lock
  • Insulation Color: Natural
  • Application: Board-to-cable/wire
  • Manufacturer Pack Quantity: 1
  • Manufacturer: Molex Connector Corporation
