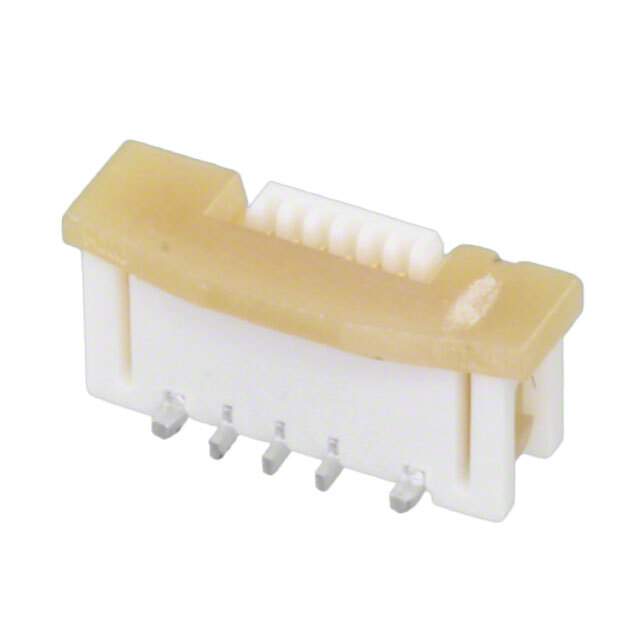

The 52559-0652 is a Flat Flex Cable (FFC) connector manufactured by Molex, LLC. This connector is designed for reliable signal and power transmission in compact electronic devices. It provides a secure and space-saving interconnection solution, making it ideal for applications where space is limited and flexibility is crucial.

Applications

• LCD displays
• Notebook computers
• Digital cameras
• Printers
• Mobile phones
• Automotive electronics

Features

• Fine pitch: Ensures high-density connections in compact devices.
• ZIF (Zero Insertion Force): Allows for easy and damage-free cable insertion and removal.
• Surface mount termination: Facilitates automated assembly processes.
• Halogen-free: Complies with environmental regulations.
• RoHS compliant: Ensures adherence to Restriction of Hazardous Substances directives.
• High durability: Provides reliable performance even with repeated insertions.

Benefits

• Space-saving design: Enables miniaturization of electronic devices.
• Reliable connection: Ensures consistent signal and power transmission.
• Easy assembly: Simplifies manufacturing processes and reduces assembly time.
• Environmentally friendly: Minimizes the use of hazardous materials.
• Cost-effective: Provides a high-performance interconnection solution at a competitive price.
• Increased design flexibility: Supports a wide range of cable thicknesses and configurations.

Additional Details

The 52559-0652 FFC connector features a specific pitch, typically ranging from 0.5mm to 1.0mm. The number of circuits (contacts) is 6. It is designed for surface mount soldering onto printed circuit boards (PCBs). The housing material is usually a high-temperature thermoplastic, which can withstand reflow soldering temperatures. Contact materials commonly include phosphor bronze or copper alloy with tin or gold plating for optimal conductivity and corrosion resistance. The operating temperature range is typically from -40°C to +85°C.
