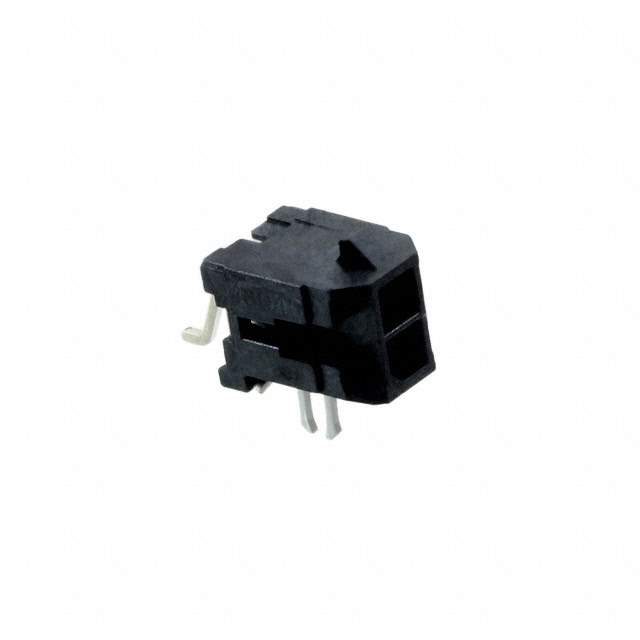

Same model may have multiple batches, images only for reference.

0430450206

Name: 0430450206
Brand: Molex, LLC
SKU: 1332855
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0430450206
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 2POS / Connector Header Surface Mount, Right Angle 2 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	8A
Voltage Rating	600V
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	043045
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	430450206,0430450206-ND,WM10685TR,WM10685CT,43045-0206,0430-45-0206,WM10685DKR,043045-0206
Standard Package	200
Win Source Part Number	1332855-0430450206
Ultra Librarian 3D Model	Ultra Librarian 0430450206 CAD Model

Description

The Molex 1332855-0430450206 is a 2-position male pin header connector.

Positions: 2
Contact Gender: Male Pin
Feature: Board Lock
Package: Shrouded, 4-Wall
Mounting Style: Surface Mount, Right-Angle
Termination: Solder
Voltage Rating: 600V
Current Rating: 8A
Contact Material: Brass
Contact Finish: Tin
Applications: General-Purpose, Medical, Military, Telecommunications
Height: 0.290" (7.37mm)
Operating Temperature: -40°C to 105°C
Compliance: RoHS3 and REACH
