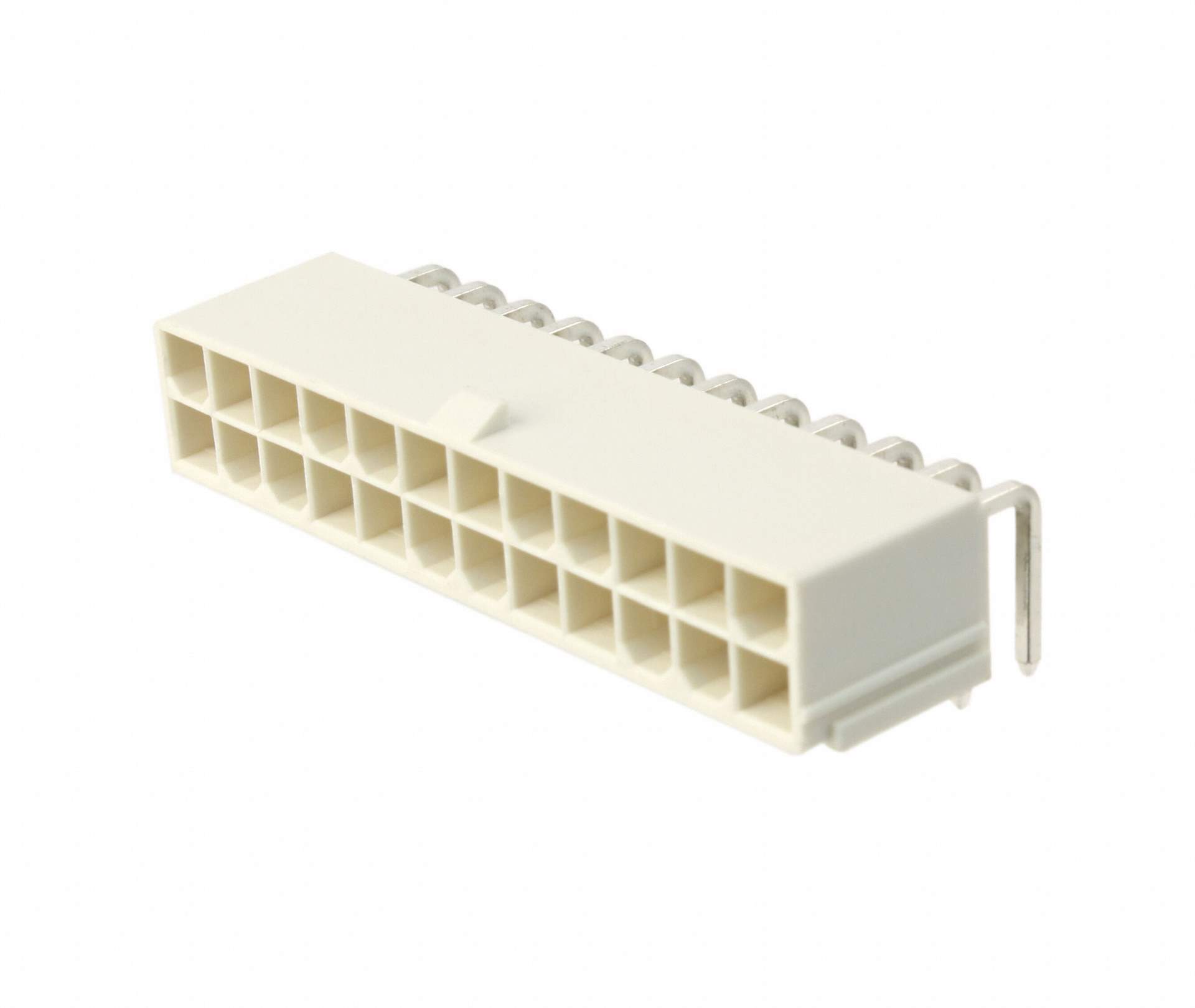

0039291247

Get a Quote

Part No	0039291247
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 24POS 4.2MM / Connector Header Through Hole, Right Angle 24 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.378" (9.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Mounting Flange
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	003929
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	03929-1247,39-29-1247,WM7242,3929-1247,5569-24A1-210,39291247,003929-1247
Standard Package	800
Win Source Part Number	1332978-0039291247
Ultra Librarian 3D Model	Ultra Librarian 0039291247 CAD Model

Description

The Molex 1332978-0039291247 is a 24-position male pin header connector with a mounting flange, suitable for use in general purpose, industrial, and telecommunications applications.

Rows: 2
Positions Loaded: All
Termination: Solder
Fastening Type: Locking Ramp
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA66) and Nylon 6/6
Design: Shrouded 4-Wall
Insulation Color: Natural
Pitch Mating: 0.165 inches (4.20mm)
Contact Finish for Mating and Post: Tin
Contact Finish Thickness: 100.0µin (2.54µm)
Insulation Height: 0.378 inches (9.60mm)
Contact Shape: Square
Temperature Range: Not Specified
Voltage Rating: Not Specified
Packaging: Bulk
Standard Package: 800
