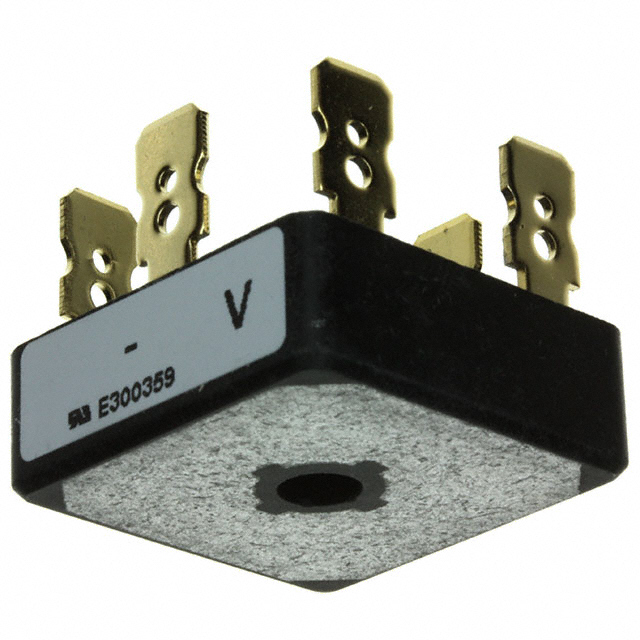

The VS-26MT60 is a three-phase bridge rectifier from Vishay, designed for a wide range of applications requiring AC to DC conversion. This module offers high reliability and efficient performance in converting three-phase alternating current into direct current.

Applications:

• Power supplies for industrial equipment
• Variable frequency drives (VFDs)
• Uninterruptible power supplies (UPS)
• Battery chargers
• Welding equipment
• Motor drives

Features:

• Electrically isolated base plate
• High thermal conductivity package
• UL E78996 approved
• Superior surge current capability
• High isolation voltage (2500 V<sub>RMS)

Benefits:

• Improved system efficiency due to low forward voltage drop
• Simplified mounting and thermal management due to isolated base plate
• Enhanced system reliability due to high surge current capability
• Reduced system size due to compact module design
• Provides robust and reliable AC to DC conversion

Additional Details:

The VS-26MT60 features a maximum average forward current of 26 Amperes. The maximum repetitive peak reverse voltage is 600V. The operating temperature range is typically between -40°C to +150°C. The module's isolated base plate facilitates efficient heat dissipation, ensuring stable operation even under demanding conditions. The compact design allows for easy integration into various systems, contributing to a reduction in overall system size. The robust construction and high surge current capability make it suitable for harsh industrial environments. This rectifier is commonly used in applications where a reliable and efficient three-phase AC to DC conversion is crucial, such as in industrial power supplies and motor control systems.
