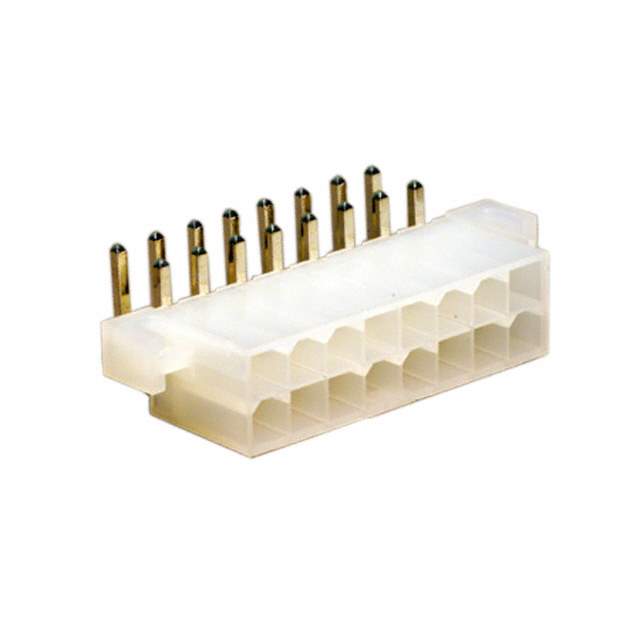

Part No 0039291168
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 4.2MM / Connector Header Through Hole, Right Angle 16 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Mounting Flange
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5569-16A1,0039-29-1168,39-29-1168,0039291168-P,39291168,0039-29-1168-P,39291168-P,WM3907,WM3907-NDR,39-29-1168-P
Standard Package 100
Win Source Part Number 1332815-0039291168
Ultra Librarian 3D Model Ultra Librarian 0039291168 CAD Model

Description

This electronic component is a 16-position, 2-row, through-hole header connector with male pins.

  • Manufacturer: Molex
  • Positions: 16
  • Rows: 2
  • Mounting: Through-hole
  • Pin Type: Male
  • Pitch: 0.165 inches (4.20mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Feature: Shrouded with 4 walls
  • Row Spacing: 0.165 inches (4.20mm)
  • Application: Board-to-cable/wire
  • Use: General purpose, industrial, and telecommunications
  • Package: Bulk
  • Standard Package: 100
  • RoHS3: Compliant
  • Flammability Rating: UL94 V-2
  • Mounting: Right angle
  • Contact Length: 0.142 inches (3.60mm)
