Same model may have multiple batches, images only for reference.

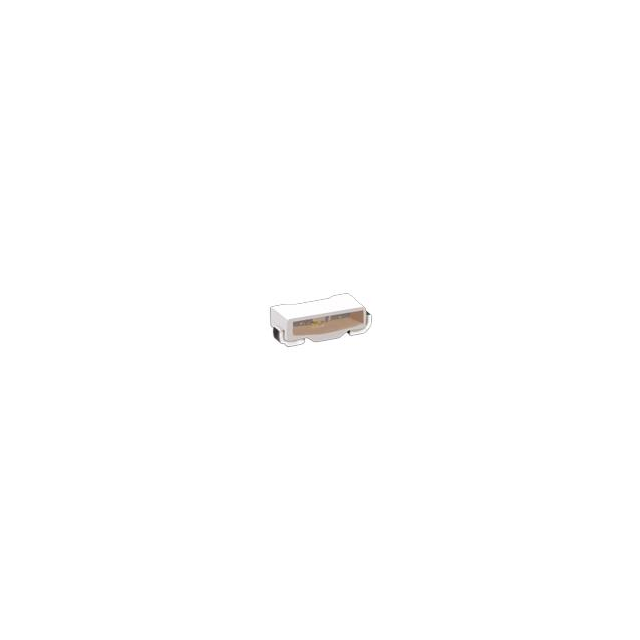

AA2810ASESK/J3 Real Image
Same model may have multiple batches, images only for reference.

AA2810ASESK/J3

Part No AA2810ASESK/J3
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD R/A / Red 625nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
Datasheet
AA2810ASESK/J3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1600mcd
Lens Style Rectangle with Flat Top
Lens Size 2.30mm x 0.57mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 625nm
Wavelength - Peak 640nm
Package / Case 2-SMD, J-Lead
Dimension 2.50mm L x 1.20mm W
Height (Max) 0.90mm
Base Product Number AA2810
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-2056-6,754-2056-2,754-2056-1
Standard Package 2,000
Win Source Part Number 1133599-AA2810ASESK/J3
Ultra Librarian 3D Model Ultra Librarian AA2810ASESK/J3 CAD Model

Description

The AA2810ASESK/J3 LED from Kingbright is a discrete LED indication component that is perfect for a wide range of electronic applications.

  • Manufacturer: Kingbright
  • Component Type: Discrete LED Indication
  • LED Color: Red
  • Family: AA2810
  • Package: Tape and Reel
  • Standard Package: 2,000
  • Voltage: 2.2V
  • Viewing Angle: 110 degrees
  • Package Style: 2-SMD, J-Lead
  • Mounting Type: Surface Mountable, Right Angle Mountable
  • Height: 0.90mm
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 2.30mm x 0.57mm
  • Estimated Production Lead Time: 7 Weeks
  • REACH: Unaffected
  • HTSUS Code: 8541.41.0000
  • Other Part Numbers: 754-2056-6, 754-2056-2, and 754-2056-1
