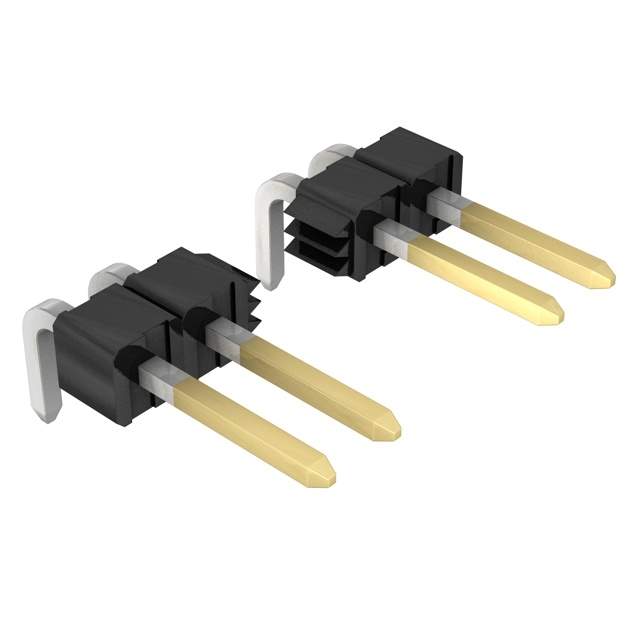

0022288112

Get a Quote

Part No	0022288112
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 11POS 2.54MM / Connector Header Through Hole, Right Angle 11 position 0.100" (2.54mm)
Datasheet	0022288112 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	11
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.244" (6.20mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	002228
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	0022-28-8112-E,22-28-8112,WM6111-ND,0022-28-8112,WM50015-11,22288112,22-28-8112-ND,22-28-8112-E,WM6111,0022288112-E,22288112-E
Standard Package	1
Win Source Part Number	1333069-0022288112
Ultra Librarian 3D Model	Ultra Librarian 0022288112 CAD Model

Description

The Molex 1333069-0908140908 Header, Breakaway Connector is a high-quality, male-pin connector with 11 positions and a pitch of 0.100" (2.54mm).

Applications: Automotive, General Purpose, Medical, and Telecommunications
Contact Finish: Gold
Contact Finish Thickness: 15.0µin (0.38µm)
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA), Nylon, Glass-Filled
MSL Level: 1 (Unlimited)
ECCN: EAR99
