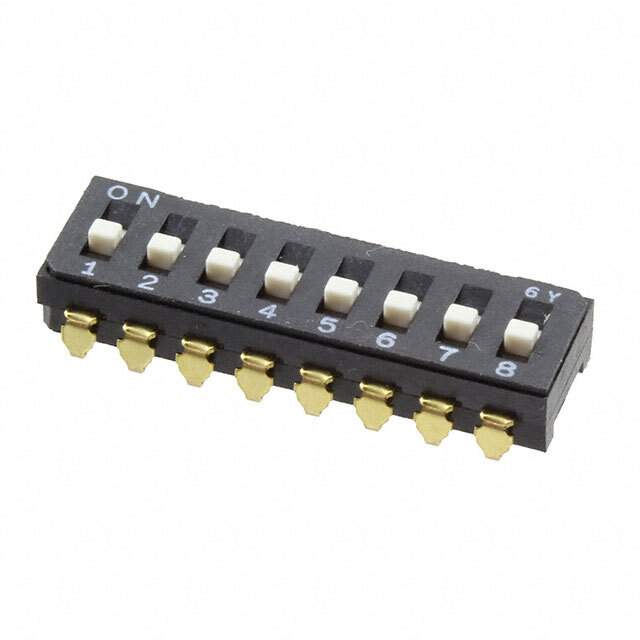

This DIP switch, with Win Source Part Number 1112809-CFS-0802TA, is part of the CFS series and has eight positions.

• Series: CFS
• Number of Positions: 8
• Pitch: 0.100" (2.54mm)
• Termination Style: J Lead (Full Termination)
• Contact Finish: Gold
• Packaging: Tape and Reel
• Contact Material: Copper Alloy
• Voltage Rating: 6VDC
• Height Above Board: 0.177" (4.50mm)
• Length: 0.858" (21.80mm)
• Standard Package: 800 units
• Mounting Type: SMD (SMT)
• Body Material: Polyphenylene Sulfide (PPS)
• Circuit: SPST
• Actuator Type: Slide (Standard)
• Electrical Life: 1,000 cycles
• Actuator Level: Raised
• Washable: No
• Operating Temperature Range: -40°C to 85°C
• Current Rating: 100mA
• Manufacturer: Nidec Copal Electronics
• Also Known As: CFS0802TA
• ECCN: EAR99
