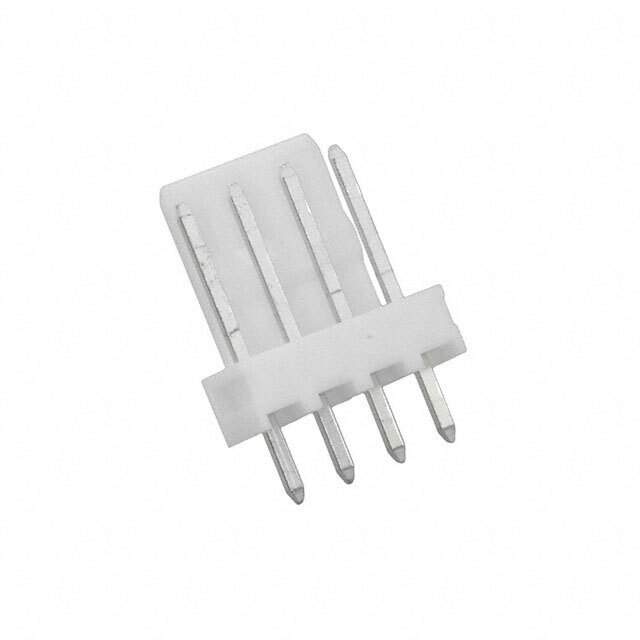

22272041

Part No 22272041
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 4POS .100 VERT TIN
Datasheet
22272041 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 197035-22272041
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 22272041 CAD Model

Description

Product Overview for 22272041

The 22272041 component offers exceptional functionality for diverse technological applications. This product stands out for its compact size and high efficiency.

Applications

  • Data acquisition systems
  • Industrial automation
  • Smart home solutions
  • Wearable technology

Features and Benefits

  • Compact design for space-efficient solutions
  • High-efficiency rating
  • Heat-resistant properties
  • Long operational life

Ideal for projects where space is at a premium but performance cannot be compromised.
