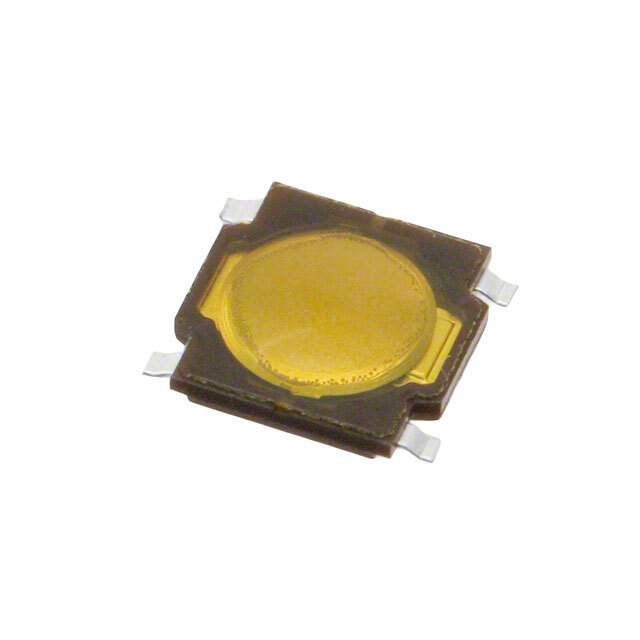

Same model may have multiple batches, images only for reference.

TL3315NF250Q

Name: TL3315NF250Q
Brand: E-Switch
SKU: 936633
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL3315NF250Q
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 15V
Datasheet	TL3315NF250Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Estimated Pruduction Lead Time	13 Weeks
Features	Tactile Switch SPST-NO Top Actuated Surface Mount
Manufacturer	E-Switch
Series	TL3315
Package	Reel - TR
Operating Temperature Range	-20°C ~ 70°C
Mounting	Surface Mount
Family Name	TL3315
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Part Number	EG4622DKR, EG4622CT, EG4622TR
Quantity per package	5000
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	936633-TL3315NF250Q
Ultra Librarian 3D Model	Ultra Librarian TL3315NF250Q CAD Model

Description

The E-Switch TL3315NF250Q is a tactile switch that is SPST-NO top actuated and surface mountable.

Manufacturer: E-Switch
Product Name: TL3315NF250Q
Type: Tactile switch
Circuit: SPST-NO
Actuation: Top actuated
Mounting: Surface mountable
Operating Temperature Range: -20°C to 70°C
Series: TL3315
Package: Reel - TR
Family Name: TL3315
Quantity per Package: 5000
MSL Level: 1 (Unlimited)
Estimated Production Lead Time: 13 weeks
REACH: Unaffected
ECCN: EAR99
HTSUS Code: 8536.50.9031
Other Part Numbers: EG4622DKR, EG4622CT, EG4622TR
