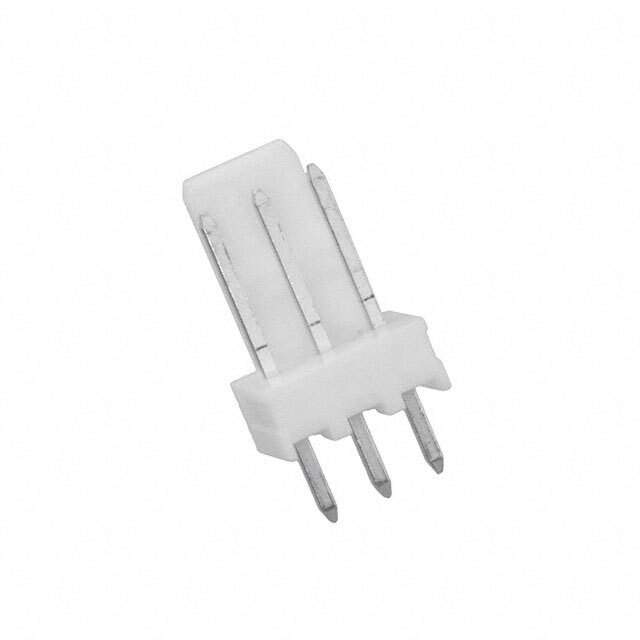

22272031 Real Image1 22272031 Real Image2
Same model may have multiple batches, images only for reference.
22272031 Real Image1 22272031 Real Image2
22272031 Real Image1 22272031 Real Image2
Same model may have multiple batches, images only for reference.

22272031

Part No 22272031
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS .100 VERT TIN
Datasheet
22272031 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 197034-22272031
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 22272031 CAD Model

Description

Product Overview for 22272031

The 22272031 is a versatile electronic component designed for various applications. Known for its reliability and efficiency, this component is suitable for numerous engineering and technical projects.

Applications

  • Embedded systems
  • Robotics
  • IoT devices
  • Consumer electronics

Features and Benefits

  • High performance with low power consumption
  • Robust design ensuring durability
  • Easy integration with existing systems
  • Cost-effective solution

Its structure supports long-term use, making it an ideal choice for projects requiring sustainable components.
