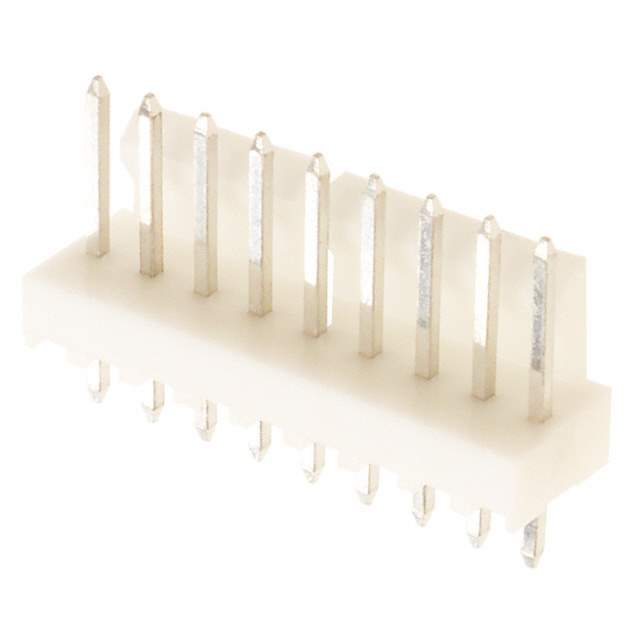

Part No 0022232091
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 2.54MM / Connector Header Through Hole 9 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.322" (8.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002223
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4207,22-23-2091-P,A-6373-09A222,22232091-P,0022-23-2091-P,0022232091-P,22232091,0022-23-2091,WM4207-NDR,22-23-2091
Standard Package 4,000
Win Source Part Number 1332447-0022232091
Ultra Librarian 3D Model Ultra Librarian 0022232091 CAD Model

Description

The Molex 1332447-0022232091 is a male header connector housing.

  • Manufacturer: Molex
  • Type: Male Header Connector Housing
  • Positions: 9
  • Rows: 1
  • Pitch: 0.100" (2.54mm)
  • Style: Board to Board or Cable
  • Contact Type: Male Pin
  • Termination: Solder
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 105°C
  • Packaging: Bulk
  • Standard Package: 4,000
