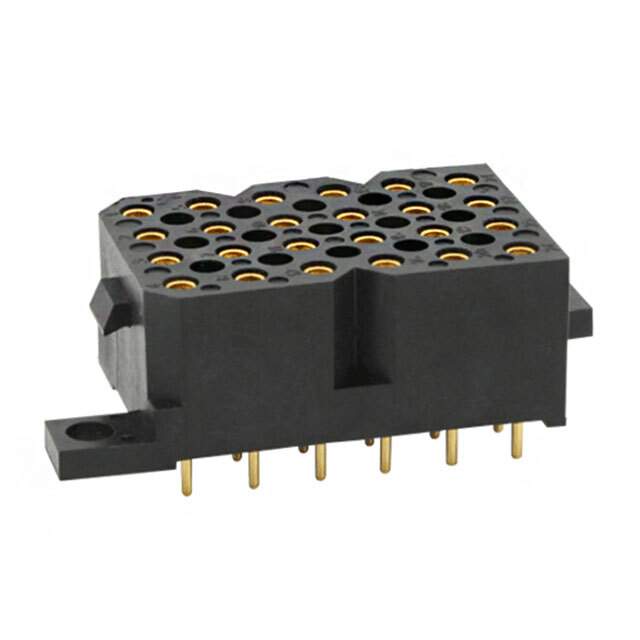

SMS24SE3K9 Real Image
Same model may have multiple batches, images only for reference.

SMS24SE3K9

Part No SMS24SE3K9
Manufacturer Souriau Connection Technology
Catalog Rectangular Connectors
Description STR BRDMNT 24POS F PCB / Conn Qikmate F 24 POS 5.08mm Solder ST Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Souriau
Series SMS
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.200" (5.08mm)
Number of Rows 6
Row Spacing - Mating 0.200" (5.08mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 16μin (0.40μm)
Insulation Color Black
Insulation Height 0.528" (13.40mm)
Contact Length - Post 0.134" (3.40mm)
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Ingress Protection IP40
Features Mounting Flange
Current Rating 5A
Insulation Material Thermoplastic, Glass Filled
Contact Shape Circular
Contact Material Copper Alloy
Win Source Part Number 794803-SMS24SE3K9
Popularity Medium
Supply and Demand Status Limited
Family Name SMS
Introduction Date April 10, 2003
ECCN EAR99
Country of Origin France
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMS24SE3K9 CAD Model

Description

The Souriau SMS24SE3K9 connector is a female socket receptacle with 24 positions.

  • Mounting: Through-hole
  • Pitch-Mating: 0.200" (5.08mm)
  • Applications: Board-to-Board or Cable
  • Fastening Type: Locking Ramp
  • Current Rating: 5A
  • Ingress Protection: IP40
  • Contact Material: Copper Alloy
  • Contact Finish-Mating: Gold (16μin (0.40μm) thickness)
  • Temperature Range: -55°C to 105°C
