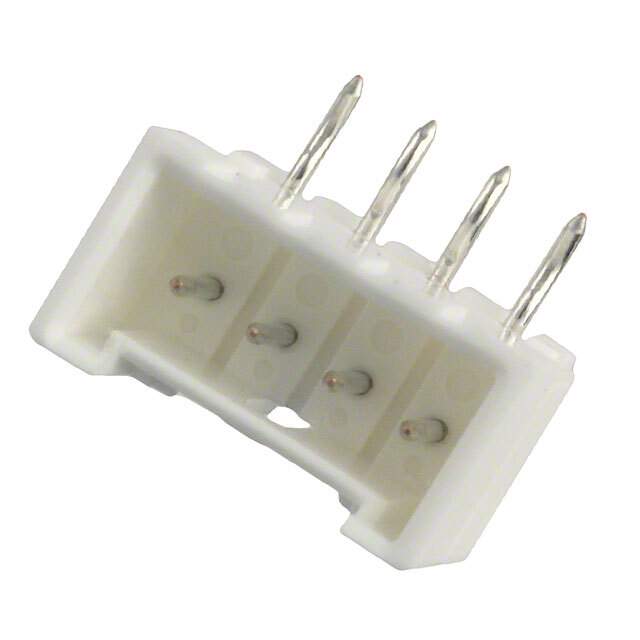

Part No 0534260410
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.50mm (.098") Pitch Mini-Lock™ Wire-to-Board Header, Right Angle, Friction andPositive Lock, 4 Circuits, Lead-free | CONN HEADER R/A 4POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.264" (6.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBTP), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications General Purpose, Industrial
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120700-0534260410
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0534260410 CAD Model

Description

The Molex 0534260410 is a 4-position header connector with a right angle through-hole mounting style.

  • Number of Positions: 4
  • Mounting Style: Right Angle Through-Hole
  • Pin Gender: Male
  • Shrouded: 4 Walls
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Pitch Mating: 0.098" (2.50mm)
  • Contact Length Mating: 0.157" (4.00mm)
  • Operating Temperature: -40°C to 105°C
  • Voltage Rating: 250V
  • Packaging: Tray
  • Popularity: Medium
