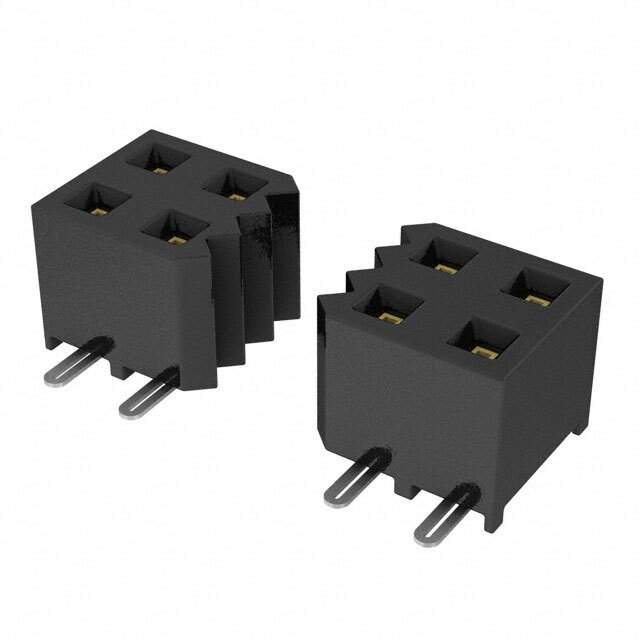

Same model may have multiple batches, images only for reference.

SMM-107-02-L-D

Name: SMM-107-02-L-D
Brand: Samtec Inc.
SKU: 794782
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-107-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM SOCKET STRIPS / Conn Socket Strip SKT 14 POS 2mm Solder ST Top Entry SMD TIGER EYE™ Tube
Datasheet	SMM-107-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Tiger Eye SMM
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Win Source Part Number	794782-SMM-107-02-L-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SMM
Introduction Date	October 07, 2003
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SMM-107-02-L-D CAD Model

Description

The Tiger Eye SMM series female socket connector is a rectangular connector that features a push-pull fastening type and a solder termination.

Contact Material: Beryllium Copper
Applications: Board-to-Board or Cable
Pitch-Mating: 0.079” (2.00mm)
Voltage Rating: 350VAC
Positions: 14 (2 rows)
Features: Board Guide, Pick and Place
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish-Mating: Gold (10.0μin (0.25μm) thickness)
Packaging: Tube
Operating Temperature: -55°C to 125°C
Manufacturer: Samtec Inc.
