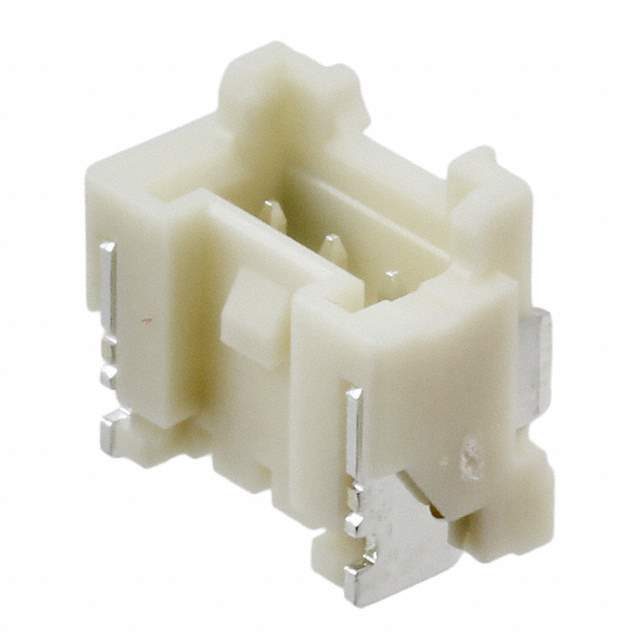

SM03B-PASS-TBT(LF)(SN)

Part No SM03B-PASS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PA 3POS SIDE SMD / Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PA
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224" (5.69mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 6.2mm, 7.6mm
Win Source Part Number 794534-SM03B-PASS-TBT(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PA
Introduction Date December 04, 2012
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SM03B-PASS-TBT(LF)(SN) CAD Model

Description

The SM03B-PASS-TBT(LF)(SN) electronic component is a connector type header manufactured by JST Sales America Inc.

  • Design: Shrouded - 4 wall
  • Insulation Color: Natural
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Number of Positions: 3
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Operating Temperature Range: -25°C to 85°C
  • Mounting Type: Surface mount, right-angle
  • Fastening Type: Locking ramp
