Same model may have multiple batches, images only for reference.

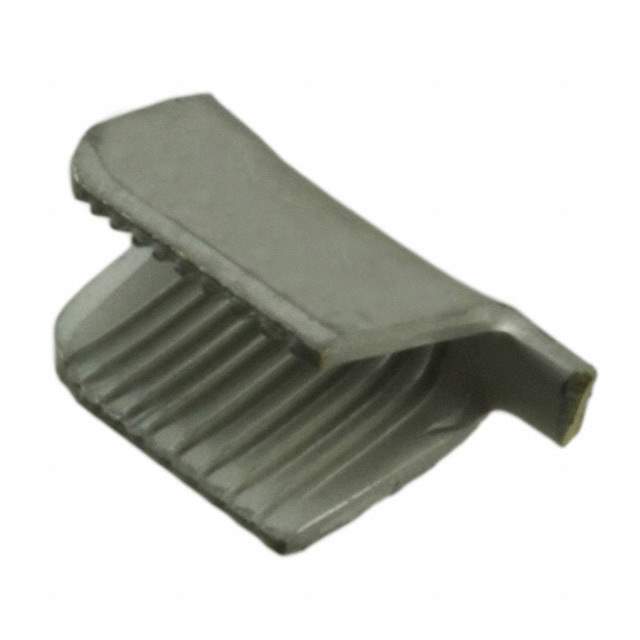

62306-2 Real Image
Same model may have multiple batches, images only for reference.

62306-2

Part No 62306-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN MAG TERM 1500-5000CMA CRIMP / Terminal Magnetic Connector Pigtail 1500-5000 CMA Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Magnetic Wire Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Style Pigtail
Terminal Type Splice
Termination Crimp
Wire Gauge 1500-5000 CMA
Features Serrated Mating Area
Base Product Number 62306
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -62306-2-LSI,-62306-2-SI,62306-2-ND,-62306-2-CSI,623062,A100761TR,A100761CT
Standard Package 30,000
Win Source Part Number 1333799-62306-2
Ultra Librarian 3D Model Ultra Librarian 62306-2 CAD Model

Description

The TE Connectivity AMP Connectors electronic component with Win Source Part Number 1333799-62306-2 is a pigtail-style terminal used for magnetic wire connectors.

  • Style: Pigtail
  • Application: Magnetic Wire Connectors
  • Packaging: Reel
  • Standard Package: 30,000
  • Wire Gauge: 1500-5000 CMA
  • Termination: Crimp
  • RoHS Compliant: Yes
  • ECCN: EAR99
