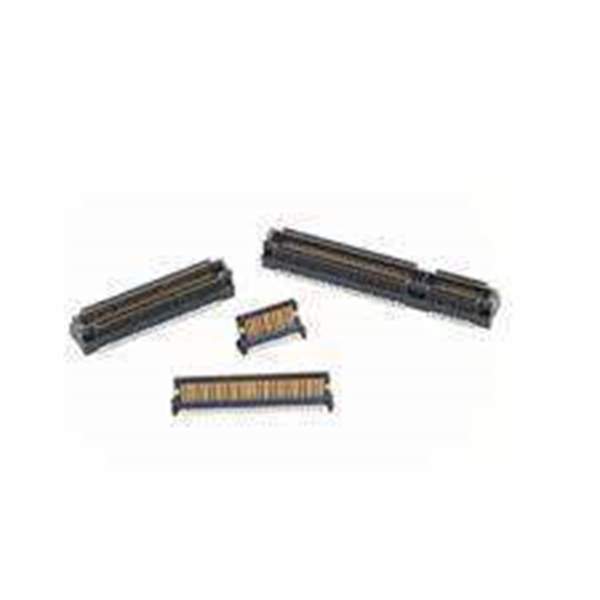

173305-0116 Molex
Same model may have multiple batches, images only for reference.

173305-0116

Part No 173305-0116
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description SPEEDEDGE PLUG ASSY, 60 CKT, 4MM
Datasheet
173305-0116 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209347-173305-0116
Manufacturer Molex
Category Connectors, Interconnects -Card Edge Connectors -Edgeboard Connectors
Package Bulk
Product Status Active
Current Rating 1 A
Flammability Rating UL 94 V-0
Termination Style Solder
Number of Rows 2 Row
Pitch 0.8 mm
Ultra Librarian 3D Model Ultra Librarian 173305-0116 CAD Model

Description

Position Connector
