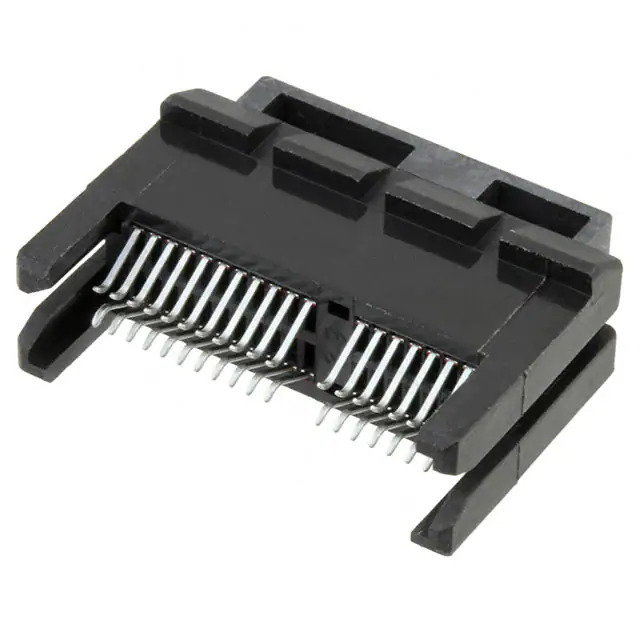

5-1734857-5 TE Connectivity
Same model may have multiple batches, images only for reference.

5-1734857-5

Part No 5-1734857-5
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions/Bay/Row -
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Card Extender, Locking Ramp
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type -
Color Black
Flange Feature -
Temperature Range - Operating -40°C ~ 85°C
Material - Insulation Polyamide (PA9T), Nylon 9T
Base Product Number 1734857
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364393-5-1734857-5
Ultra Librarian 3D Model Ultra Librarian 5-1734857-5 CAD Model

Description

TE Connectivity AMP Connectors offers a card edge connector in the category of edgeboard connectors.

  • Positions: 36
  • Number of Rows: Dual
  • Base Product Number: 1734857
  • Features: Card Extender, Locking Ramp
  • Temperature Range: -40°C to 85°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Card Type: PCI Express™
  • Pitch: 0.039" (1.00mm)
  • Housing Material: Black Polyamide (PA9T) and Nylon 9T
