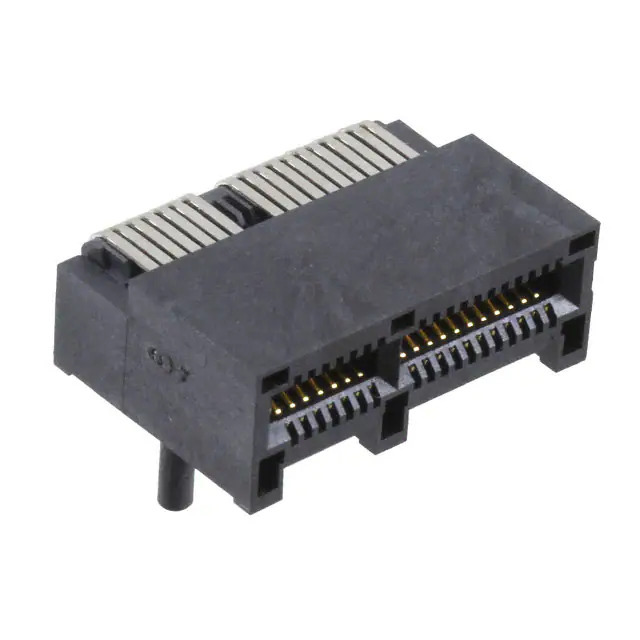

PCIE-036-02-F-D-RA Samtec Inc.
Same model may have multiple batches, images only for reference.

PCIE-036-02-F-D-RA

Part No PCIE-036-02-F-D-RA
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
PCIE-036-02-F-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series PCI Express® (PCIe)
Package Tube
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions/Bay/Row -
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Type Through Hole, Right Angle
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Contact Type -
Color Black
Flange Feature -
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number PCIE-036
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364406-PCIE-036-02-F-D-RA
Ultra Librarian 3D Model Ultra Librarian PCIE-036-02-F-D-RA CAD Model

Description

The Samtec Inc. PCI Express PCIe-036-02-F-D-RA is a card edge connector designed for edgeboard applications from Samtec Inc..

  • Pitch: 0.039" (1.00mm)
  • Positions: 36
  • Rows: 2
  • Mounting Type: Through Hole
  • Mounting Orientation: Right Angle
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Contact Material: Phosphor Bronze
  • Gender: Female
  • Color: Black
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Series: PCI Express
  • Status: Active
  • Package: Tube
