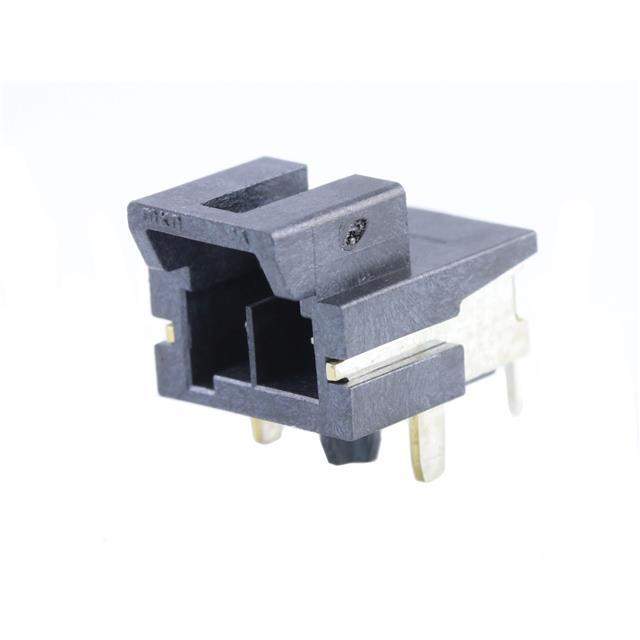

1723103102 Real Image
Same model may have multiple batches, images only for reference.

1723103102

Part No 1723103102
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Ultra-Fit 172310
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.353" (8.96mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC/DC
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172310
Other Names 900-1723103102,172310-3102
Standard Package 180
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293214-1723103102
Ultra Librarian 3D Model Ultra Librarian 1723103102 CAD Model

Description

The Molex 1293214-1723103102 is a header connector that is solder terminated.

  • Termination: Solder
  • Positions: 2
  • Rows: 1
  • Voltage Rating: 600VAC/DC
  • Applications: Automotive, General Purpose, Industrial, Lighting, Medical, Military, and Telecommunications
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Pitch: 0.138" (3.50mm)
  • Contact Finish: Tin
  • RoHS: Compliant
  • Temperature Range: -40°C ~ 105°C
