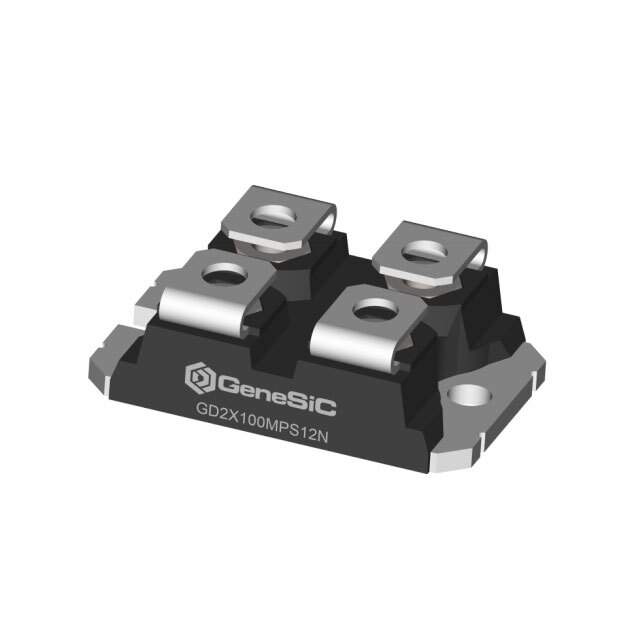

GD2X100MPS12N Real Image
Same model may have multiple batches, images only for reference.

GD2X100MPS12N

Part No GD2X100MPS12N
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description 1200V 200A SOT-227 SIC SCHOTTKY / Diode Array 2 Independent 1200 V 136A (DC) Chassis Mount SOT-227-4, miniBLOC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr GeneSiC Semiconductor
Series MSP
Package Tube
Diode Configuration 2 Independent
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 136A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 100 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 25 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Base Product Number GD2X
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350203-GD2X100MPS12N
Ultra Librarian 3D Model Ultra Librarian GD2X100MPS12N CAD Model

Description

The GeneSiC Semiconductor GD2X100MPS12N is a Silicon Carbide Schottky diode array in a SOT-227-4, miniBLOC package.

  • Voltage Rating: 1200V
  • Current Rating: 136A
  • Forward Voltage: 1.8V @ 100A
  • Reverse Recovery Time: None
  • Units: 10
  • Package: SOT-227-4, miniBLOC
  • Mounting Type: Chassis Mount
  • Operating Temperature: -55°C to 175°C (TJ)
