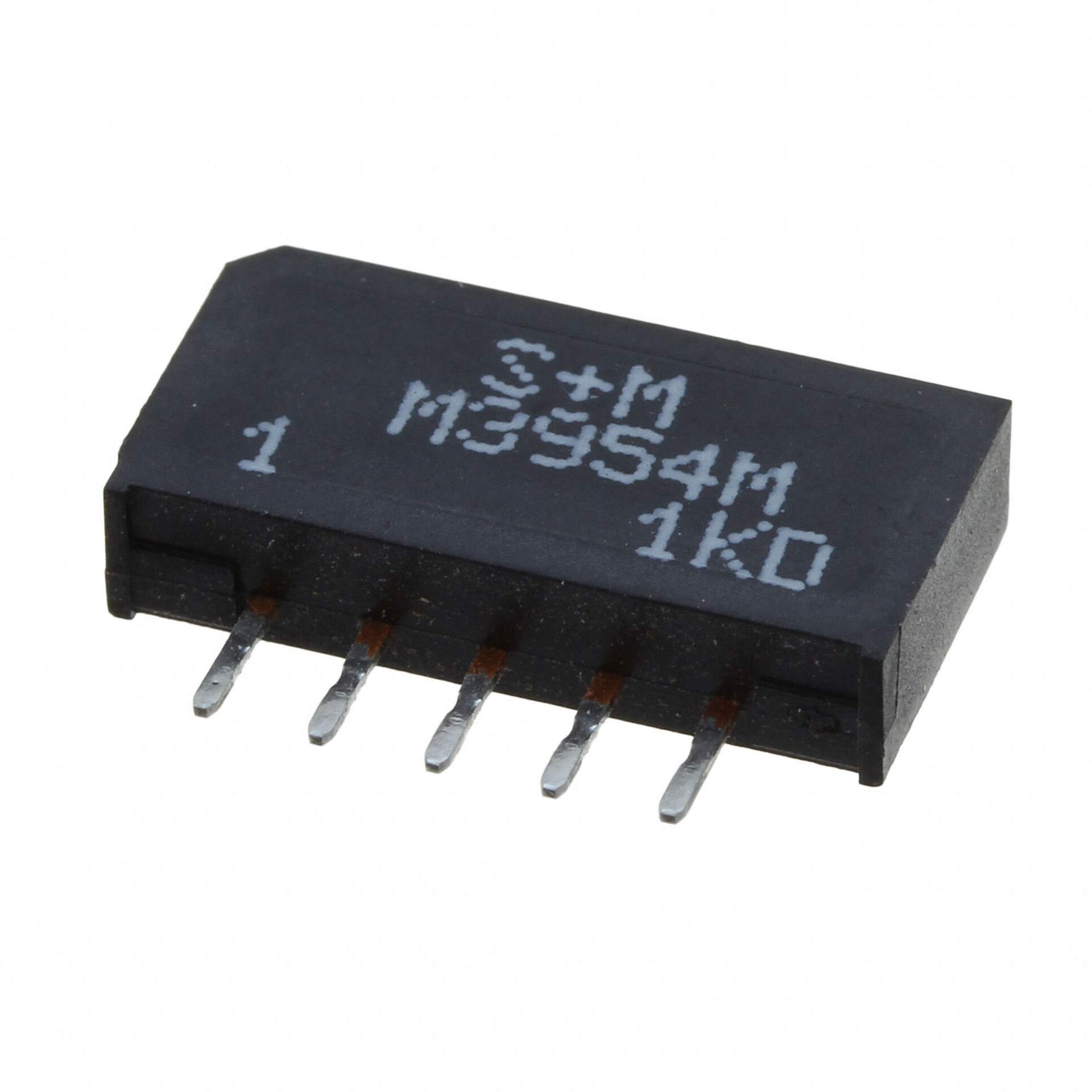

M3954M Real Image
Same model may have multiple batches, images only for reference.

M3954M

Part No M3954M
Manufacturer EPCOS (TDK)
Catalog SAW Filters
Description FILTER SAW IF 45.75MHZ 5-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Obsolete(EOL)
Frequency - Center 45.75MHz
Insertion Loss 14.8dB
Applications TV
Mounting Through Hole
Height (Max) 0.343" (8.70mm)
Dimension 0.681" L x 0.154" W (17.30mm x 3.90mm)
Win Source Part Number 207117-M3954M
Ultra Librarian 3D Model Ultra Librarian M3954M CAD Model

Description

The EPCOS (TDK) M3954M is an obsolete (EOL) filter designed for TV applications.

  • Popularity: Low
  • Supply and Demand: Balanced
  • Insertion Loss: 14.8dB
  • Frequency Center: 45.75MHz
  • Bandwidth: Not specified
  • Height: 0.343 inches
  • Dimensions: 0.681 inches L x 0.154 inches W

This filter is an ideal choice for your TV applications.
