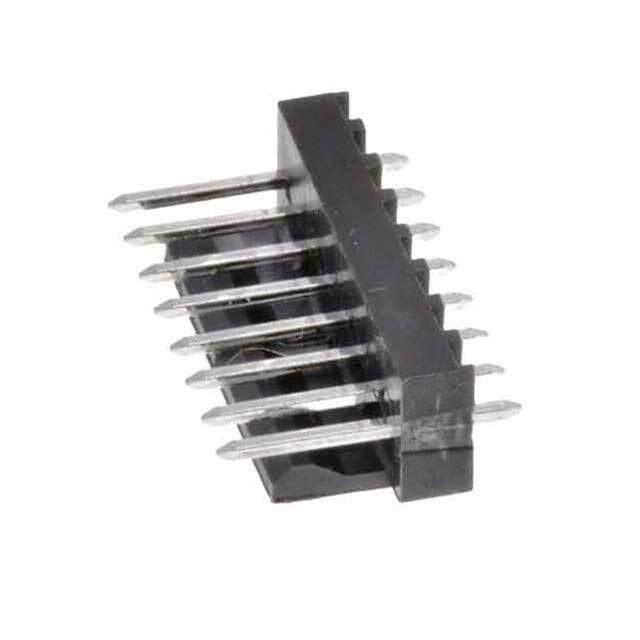

Same model may have multiple batches, images only for reference.

1718563008

Get a Quote

Part No	1718563008
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	KK254, 171856
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.293" (7.45mm)
Contact Length - Post	0.092" (2.34mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.322" (8.18mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-2
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	171856
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	150 pcs
Win Source Part Number	1380554-1718563008
Ultra Librarian 3D Model	Ultra Librarian 1718563008 CAD Model

Description

The KK254 171856 series male pin header is a versatile connector designed for various applications in automotive, general purpose, medical, and telecommunications industries.

Series: KK254 171856
Style: Board to Board or Cable
Pitch: 0.100" (2.54mm)
Contact Material: Brass
Termination: Solder
Fastening Type: Friction Lock
Packaging: Tape & Reel (TR)
Flammability Rating: UL94 V-2
Contact Length - Overall: 0.510" (12.95mm)
Insulation Height: 0.322" (8.18mm)
