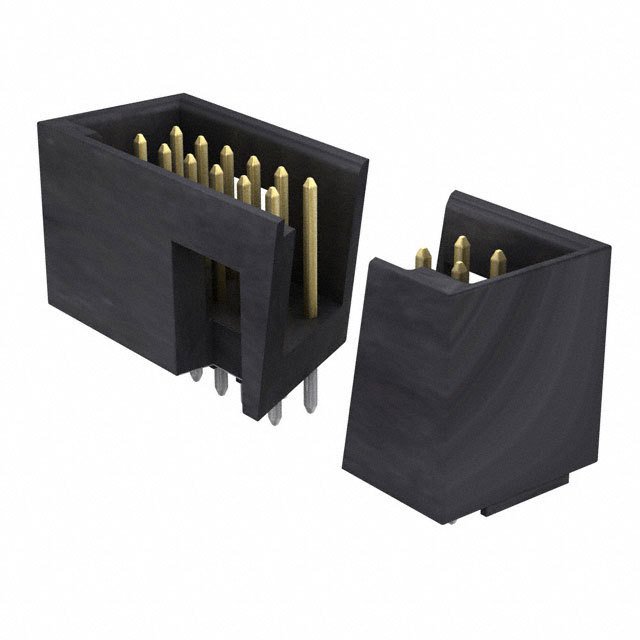

15800203 Molex, LLC
Same model may have multiple batches, images only for reference.

15800203

Part No 15800203
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 20POS VERT GOLD T/H
Datasheet
15800203 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series C-Grid 70567
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.315" (8.00mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.570" (14.48mm)
Insulation Height 0.475" (12.07mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number 760490-15800203
Popularity Medium
Supply and Demand Status Limited
Family Name 70567
Introduction Date May 24, 2010
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 15800203 CAD Model

Description

The Molex C-Grid 70567 series is a through-hole header connector from Molex.

  • Positions: 20
  • Fastening Type: Detent Lock
  • Contact Type: Male Pin
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Style: Board to Cable/Wire
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold, 15μin (0.38μm) thickness
  • Contact Finish-Post: Tin, 74.8μin (1.90μm) thickness
  • Shrouding: 4 walls
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Contact Length-Post: 0.130" (3.30mm)
  • Insulation Height: 0.475" (12.07mm)
  • Overall Contact Length: 0.570" (14.48mm)
  • Applications: Automotive, General-Purpose, Lighting, Medical, Telecommunications
